OLT Capacity Planning for GPON Access Networks

OLT Capacity Planning for GPON Access Networks
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

Strategic OLT Capacity Planning

Strategic OLT Capacity Planning

  • Access networks are under pressure to absorb growing subscriber counts, higher bandwidth tiers, and more latency‑sensitive services, all without disrupting existing GPON infrastructure. Poor OLT capacity planning can quickly trigger chassis congestion, uplink bottlenecks, and costly forklift upgrades. Operators need a way to align GPON OLT systems, line cards, and optical uplinks with realistic growth scenarios instead of best‑effort port counting.

    This section frames OLT capacity planning as a series of design decisions: how to size GPON OLT platforms such as compact and modular chassis, when to extend with line cards and GPON service boards, and how to dimension uplink and GPON optics for sustained throughput. The following guidance helps compare options, stage investments, and build a practical roadmap from today’s demand to future subscriber and service growth.

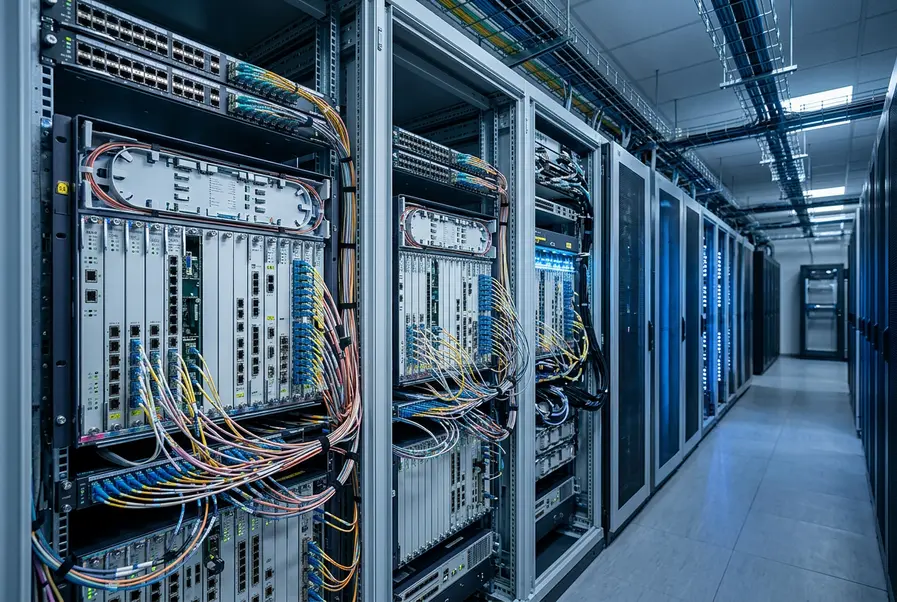

Balancing OLT Capacity, Growth and Risk

Translating subscriber growth and service tiers into OLT, line card and uplink capacity is a multi-variable design problem, not a box count.

Balancing OLT Capacity, Growth and Risk

  • Unclear GPON capacity and split ratio limits

    Mapping 1:64/1:128 splits, service tiers and CGP-OLT/EA5800 boards to real throughput is hard, risking over‑ or under‑subscription.

  • Phased expansion vs. stranded OLT assets

    Planning line card and transceiver additions without wasting PON ports, uplink slots or chassis space is complex across OLT models.

  • Migrating and mixing generations reliably

    Aligning older OLT frames, new GPON boards and uplink optics while keeping services stable adds compatibility and O&M uncertainty.

OLT Capacity Planning Priorities

Design GPON OLT capacity that scales with subscribers while controlling uplink and port investments.

Right-size OLT footprint

Match CGP and EA5800 OLT models to current and 3–5 year subscriber growth.

Phase expansion by line card

Use GPON service boards to add ports, adjust split ratios, and defer chassis swaps.

Balance PON and uplink traffic

Plan GPON and uplink optics to avoid backbone bottlenecks as take-rate increases.

Fixed vs Scalable OLT Capacity Planning Comparison

Compare fixed OLT chassis, line-card based scaling, and transceiver-led uplink design to choose the right capacity strategy for your fiber access network.

Feature Fixed OLT Chassis Sizing Line-Card & GPON Port Scaling
Optical Uplink & Interface Planning (hot)
 Business Impact
Primary planning focus Select full OLT platforms (CGP-OLT-8T/16T, EA5800 series) based on expected subscriber count and split ratios at day one. Add or swap service boards (H805GPFD, H802GPFD, H80D00GPFDxx) as take-up grows, keeping chassis investment stable. Dimension GPON and uplink optics (SFP-GPON-B-I, OLT uplink modules) for aggregate bandwidth, oversubscription and redundancy from day one. Clarifies whether you size for ports, for growth flexibility, or for upstream bandwidth, avoiding under- or over-build.
Deployment fit Best for greenfield sites with reasonably predictable penetration and long-term population stability. Ideal for maturing networks where penetration and service mix are changing and capacity must grow in phases. Critical for multi-service and multi-tenant environments where backhaul, peering, or DC uplink is the real bottleneck. Aligns your strategy to project maturity: new build, expansion, or bandwidth-constrained hub sites.
Capacity risk & flexibility High risk of stranded ports or early chassis saturation if forecasts are inaccurate; re-chassis upgrades can be disruptive. Granular port additions reduce risk; you can tune split ratios and card mix to match real adoption and ARPU evolution. Uplink optics can be tuned or upgraded to align with real traffic profiles, protecting against core congestion without touching access ports. Reduces both underutilized investment and emergency upgrades by matching flexibility where your uncertainty is highest.
Performance & service evolution Supports broad service types but performance is tied to initial chassis choice; upgrading mid-life can be complex and costly. Easy to introduce higher-density or newer GPON/10G PON boards as services evolve, while keeping existing frame and operations. Lets you incrementally raise uplink speeds, add redundancy, and separate business vs residential traffic using different optics. Ensures that future premium or symmetrical services can be introduced with minimal disruption and targeted CAPEX.
Cost profile & TCO Larger upfront CAPEX with potentially lower unit price per port, but payback depends on fast subscriber ramp-up. More balanced CAPEX over time; you pay for ports as you need them, at the cost of higher planning and inventory complexity. Optics-led planning optimizes spend on the real cost driver—uplink capacity—while keeping access layer investments efficient. Improves ROI by aligning spending with revenue ramp and where each dollar yields the most additional usable capacity.
Operational complexity Operationally simple: single bill-of-materials, standardized platform per site; easier for small teams. Requires lifecycle and stock management for multiple board types, versions, and split-ratio profiles. Demands traffic monitoring, optical budget tracking, and change control for uplink upgrades and failover paths. Helps you trade simplicity vs fine-grained control so operations teams are not overburdened for your network scale.
Scalability & multi-site rollout Scaling means adding more full OLTs or migrating to larger chassis (EA5800-X2/X7/X17), which may not match every site size. Scales efficiently inside each chassis; good for central offices and large POPs, but less ideal for very small remote sites. Scales horizontally by tuning uplinks and optics per site, enabling mixed-size sites using similar OLT blocks and practices. Enables a scalable blueprint for many sites with consistent design principles, regardless of individual site size.
When to prioritize this Use when you have strong long-term demand forecasts and want a standard, repeatable OLT footprint per location. Use when you expect uncertain uptake, multiple speed tiers, and need to phase expansion without frequent chassis changes. Make this the core lens when your concern is core/backhaul saturation, multi-service SLAs, or high-value business users. Points you toward a planning approach: start from chassis count, from port growth, or from end-to-end bandwidth guarantees.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal OLT Capacity Planning Applications

Where GPON OLT capacity planning best fits for scalable fiber access, subscriber growth and uplink design across different operator environments.

FTTH Mass Deployment for City and Suburban Operators

FTTH Mass Deployment for City and Suburban Operators

  • Dimension central and distributed GPON OLTs such as EA5800-X17 or CGP-OLT-16T to balance port density, split ratios and fiber ring topology for large FTTH rollouts.
  • Plan phased subscriber growth by mixing high-density OLTs with smaller EA5801-CG04 aggregation nodes, aligning PON card population and chassis backplane capacity with take-up forecasts.
  • Design optical uplink capacity from each OLT cluster to the core using 10G/25G transceivers and link aggregation, ensuring backhaul headroom during peak video and broadband traffic.
Rural Broadband and WISP Fiber Extension

Rural Broadband and WISP Fiber Extension

  • Use compact OLTs such as EA5801-CG04 or CGP-OLT-8T in remote cabinets to extend fiber from wireless POPs, planning PON counts and split ratios to match sparse subscriber clusters.
  • Stage GPON service board additions so that initial low port fill still respects power, cooling and backhaul constraints in small rural shelters or outdoor enclosures.
  • Engineer long-reach GPON optics and redundancy paths, choosing appropriate SFP-GPON-B-I transceivers and uplink modules to cope with extended feeder distances and limited fiber pairs.
Multi-Tenant and Large Enterprise Campus Fiber Access

Multi-Tenant and Large Enterprise Campus Fiber Access

  • Plan OLT placement in main and intermediate distribution frames so that GPON coverage, VLAN segmentation and power budgets align with multi-building campus layouts.
  • Size EA5800-X2 or EA5800-X7 OLTs plus GPON service boards to support a mix of office users, IP phones, Wi-Fi APs and IoT endpoints while leaving capacity margin for future tenants.
  • Design uplink bandwidth from OLTs to the data center core using appropriate Ethernet uplink modules, ensuring differentiated QoS and redundancy for business-critical applications.
Data Center and Edge POP Aggregation over GPON

Data Center and Edge POP Aggregation over GPON

  • Use high-capacity chassis OLTs such as EA5800-X17 in central data centers to aggregate multiple access rings, planning slot allocation between GPON service boards and uplink cards.
  • Design edge POPs with smaller EA5800-X2 or EA5801 units, then calculate required backhaul trunks and optical modules from each POP to the core to avoid oversubscription at peak load.
  • Coordinate GPON port density, split planning and uplink module selection to support cloud access, content delivery and enterprise VPN services delivered from edge locations.
Service Evolution to Triple-Play and High-Bandwidth Services

Service Evolution to Triple-Play and High-Bandwidth Services

  • Forecast bandwidth per PON based on migration from basic broadband to 4K video, cloud services and SME access, then plan GPON service board mix and split ratios accordingly.
  • Introduce additional GPON line cards or higher-capacity boards in EA5800 series OLTs in phases, matching CAPEX with actual uptake of IPTV, VoIP and enterprise service bundles.
  • Upgrade uplink optics and link aggregation settings on OLT uplink modules to ensure that new high-throughput services do not create congestion from the PON layer to the IP core.

Frequently Asked Questions on OLT Capacity Planning

How do I choose between compact OLTs like CGP-OLT-8T/16T and chassis-based EA5800 (X2/X7/X17) for capacity planning?

  • Use compact OLTs such as CGP-OLT-8T, CGP-OLT-16T and EA5801-CG04 (AC/DC) where subscriber counts, space and power are constrained, or where you want low-risk pilots and distributed access nodes close to buildings or small POPs.
  • Select EA5800-X2/X7/X17 when you expect multi-year subscriber growth, need higher slot density for GPON service boards (e.g., H805GPFD, H80D00GPFD22) and want room for phased expansion without frequent node replacement.
  • In mixed environments, many operators deploy compact OLTs at the edge and EA5800 in aggregation sites; our team can simulate different take-up rates, split ratios and 10G uplink requirements to recommend a topology that avoids early forklift upgrades.
  • For complex multi-site decisions, you can request design assistance through our free CCIE support.

What should I check for line-card and GPON service board compatibility when scaling EA5800 or similar OLTs?

  • Before adding boards like H805GPFD, H802GPFD, H806GPBH, H80D00GPFD03 or H805GPFD51, confirm the EA5800 main control board software release and hardware version support the target GPON service board; some cards require specific firmware or minimum version.
  • Check per-slot power and backplane bandwidth budgets: high-density boards (e.g., H80D00GPFD22/51) may change the maximum number of simultaneously populated GPON boards without derating, which directly affects your planned split ratio and subscriber capacity.
  • Verify optical interface type and class (e.g., Class B+/C+) so that the chosen SFP-GPON-B-I transceivers and outside plant design meet your reach and loss budget; mixing different optics types on one PON can limit overall performance to the weakest component.
  • When planning expansions across a long lifecycle, use our EOL / EOSL checker to understand long-term support status and avoid locking new builds on soon-to-be-retired hardware.

How can I plan uplink bandwidth from OLTs using SFP-GPON-B-I and optical uplink modules like NCS1K-E-OLT-L?

  • Start from a peak oversubscription target: for example, many ISPs keep GPON:uplink oversubscription between 4:1 and 10:1 depending on service tiers; then map total GPON capacity on service boards (e.g., H80D00GPFD22) to the required number and speed of uplinks on the EA5800 or EA5801.
  • For aggregation or long-haul to core, modules such as CIS:NCS1K-E-OLT-L, CIS:NCS1K-OLT-L or Huawei-OptiX-OSN-1800-1-E help connect high-density OLT sites into DWDM or 100G/200G transport; you should validate optical budget versus your metro or backbone design and consider future upgrades to higher line rates.
  • Reserve free uplink ports to absorb traffic growth and new service tiers (e.g., business VPN or mobile backhaul on top of residential GPON) so that you can add higher-speed uplinks later without disruptive re-cabling.
  • If you are uncertain about how many uplinks to light from day one, we can provide traffic-modelling and phased activation guidance via our free CCIE support service.

What risks should I consider around product lifecycle, EOL and scalability when planning OLT capacity?

  • For long-term FTTH rollouts, an OLT reaching EOL/EOSL mid-project can disrupt expansion plans; always check the lifecycle of chassis (EA5800 series, CGP-OLT series, EA5801-CG04) and service boards (e.g., H805GPFD, H806GPBH) using our EOL / EOSL checker before finalising your bill of materials.
  • Avoid designs that run at near 100% card slot occupancy from day one on EA5800-X2/X7/X17; leave at least one or more spare slots for future GPON service boards so you do not have to create new OLT sites prematurely.
  • Consider interoperability risks: while SFP-GPON-B-I and optical uplink modules are widely used, mixing vendors at the PON or DWDM layer may require additional validation testing to ensure full feature and performance support.
  • We can propose alternative or next-generation SKUs (including mix of compact OLTs and chassis-based OLTs) to minimise lifecycle risk if your preferred models are already approaching EOL or have regional constraints.

What should I expect for lead time, shipping and customs when ordering OLT chassis, line cards and optics for a capacity upgrade?

  • Lead time for OLT systems (EA5800 series, CGP-OLT-8T/16T, EA5801-CG04) and GPON boards (H805GPFD, H80D00GPFD22, etc.) can vary by stock level, region and configuration; for in-stock items, shipping time will depend on product availability, selected carrier and destination country.
  • High-demand or less common parts such as specific GPON service boards or optical modules (e.g., NCS1K-E-OLT-L, Huawei-OptiX-OSN-1800-1-E) may require additional sourcing time; we recommend planning your migration windows with schedule buffer, especially for large-scale capacity expansions.
  • To understand the possible logistics options and constraints for your region, you can refer to our overview of international delivery on the shipping methods page.
  • For taxes, duties and import procedures that may affect landed cost and schedule, please review our guidance on taxes and customs duties and coordinate with your local broker.

What kind of post-purchase support, warranty and return options are available for OLT capacity planning projects?

  • For design validation, configuration templates and migration cut-over planning across OLTs (EA5800 series, EA5801-CG04, CGP-OLT-8T/16T) and GPON boards, you can consult our network experts via free CCIE support, including pre-deployment reviews to reduce rollout risk.
  • Warranty coverage and available service SKUs may differ between chassis, line cards (e.g., H802GPFD, H805GPFD51) and optics (e.g., SFP-GPON-B-I, NCS1K-OLT-L); you should align your capacity plan with maintenance windows and spares strategy based on our warranty policy.
  • If you encounter DOA or early-life hardware issues, you can follow the step-by-step RMA workflow described in our return instructions, and we recommend keeping at least minimal cold spares for critical OLT and line cards during the investigation period.
  • Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
