Designing Multi Gigabit Access with Cisco Catalyst 9200 Switches

Designing Multi Gigabit Access with Cisco Catalyst 9200 Switches
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

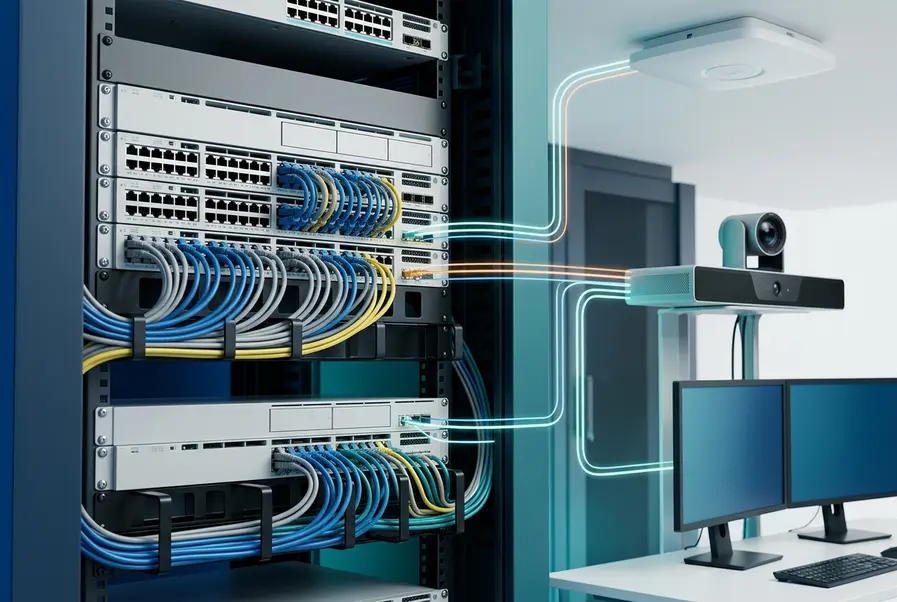

Access Design Trade-Offs

Access Design Trade-Offs

  • Tech offices pushing multi-gigabit Wi-Fi, collaboration platforms, and dense PoE devices quickly discover that legacy access designs become the bottleneck. The pressure is to deliver higher edge throughput, stable power for more endpoints, and room for growth, without overbuilding or fragmenting the access layer. Choosing between 24-port and 48-port Cisco Catalyst 9200 PoE switches is less about raw port count and more about how each design supports real user and application patterns.

    This section frames how to evaluate Cisco Catalyst 9200-24P-E versus 9200-48P-E within a multi-gigabit-ready access strategy, alongside 9200L and multi-gigabit variants. It highlights decision points such as port density planning, PoE budget headroom, uplink and stacking strategy, floor-by-floor Wi-Fi 6/6E coverage, and lifecycle scalability, so network teams can converge on a right-sized, cost-aware access design for modern tech offices.

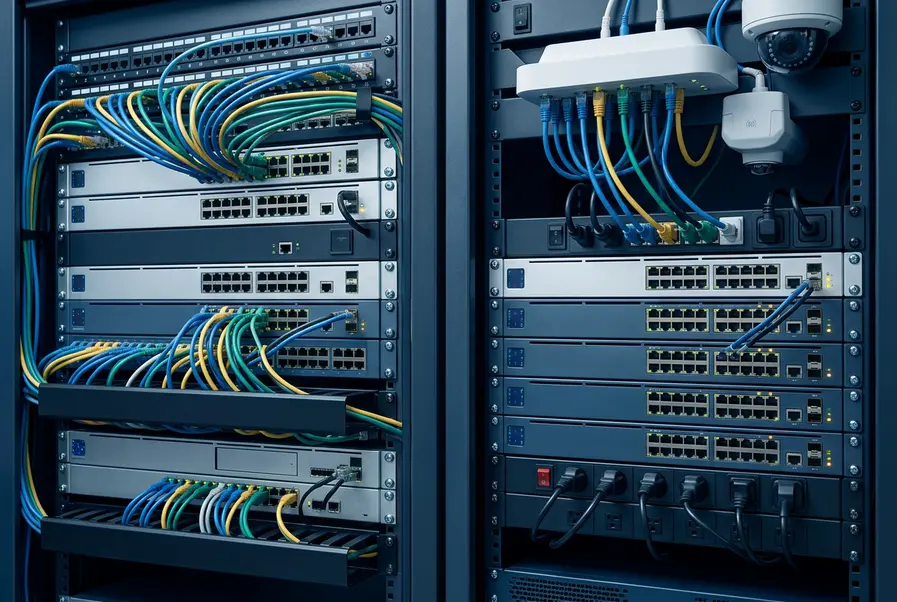

Balancing Multi‑Gig Access and PoE Density

Planning multi‑gigabit office access is constrained by PoE power, port density, uplink capacity, and lifecycle choices between 24‑port and 48‑port stacks.

Balancing Multi‑Gig Access and PoE Density

  • Right‑sizing 24 vs 48 ports per closet

    Misjudging port density or Wi‑Fi 6/6E growth leads to stranded PoE capacity, oversized stacks, or frequent re‑cabling in tech offices.

  • Aligning PoE budget with device mix

    Mixed phones, APs, cameras, and IoT make it hard to match switch PoE budget to real loads without overpaying or risking power shortfalls.

  • Future‑proofing uplinks and stack design

    Choosing between standard and multi‑gig, fixed vs modular uplinks affects scalability, stack bandwidth, and the cost of future upgrades.

Cisco 9200-24P-E vs 9200-48P-E Comparison

Compare 24-port vs 48-port Cisco Catalyst 9200 PoE switches to design scalable, multi-gig-ready tech office access networks.

Feature C9200-24P-E
C9200-48P-E (hot)
 Business Impact
Deployment fit Best for compact tech offices, labs or pods with up to ~20–24 wired users and a few Wi‑Fi 6 APs. Best for larger open offices, multi-team tech floors or dense AP deployments with up to ~40–48 endpoints. Aligns port density with actual headcount and device growth, avoiding under- or over-building the access layer.
Port density & scaling 24 PoE access ports; scaling often requires adding another switch earlier as you grow. 48 PoE access ports; doubles edge density per stack member and delays the need for new switches. Higher initial density reduces rack footprint, power, and operational overhead per user for growing offices.
Multi‑gig & Wi‑Fi 6/6E readiness Sufficient for a smaller number of Wi‑Fi 6 APs or power users; easier to dedicate ports to high-throughput endpoints. Better suited when many Wi‑Fi 6/6E APs, IP phones, and IoT devices converge on the same floor. Supports multi-gig access designs where more APs and power users can be homed on a single access layer.
PoE budget & endpoint mix Enough PoE for moderate numbers of phones, APs and cameras; good when power-hungry endpoints are limited. Larger PoE footprint across more ports; simplifies powering many APs, phones, cameras, and IoT devices from one switch. Reduces PoE planning complexity and dispersed power injectors, improving manageability and availability.
CapEx & budget profile Lower upfront cost and PoE capacity; ideal when budget is tight and growth is uncertain or slow. Higher initial cost, but better cost per port and per powered endpoint at scale. Optimizes long-term TCO in growing tech offices by trading modest upfront premium for better unit economics.
Stacking & resilience planning Smaller stacks (e.g., two 24-port units) can segment teams but reach port limits sooner under failure scenarios. Fewer, higher-density stack members; easier to maintain capacity after a switch failure within a stack. Improves resiliency and simplifies stack design while preserving enough ports during maintenance or outages.
Space, power & cabling Uses less rack RU and power when only a few ports are used; good for micro-rooms or small branch closets. Consolidates more users into the same RU, often lowering watts/user and structured cabling complexity. Helps standardize floor wiring and reduce per-user energy and cabling overhead in modern tech offices.
Future growth & lifecycle Better for stable or slowly expanding teams; upgrades might require adding more switches sooner. Designed for rapid headcount and device expansion; more room for additional APs, endpoints, and lab devices. Delivers a longer useful life in fast-growing tech environments, deferring major access-layer refresh cycles.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal Use Cases for Tech Offices

Designed for modern tech offices planning multi-gigabit-ready access layers, high-density PoE, and scalable port-count expansion across floors and teams.

High-Density Engineering Floors and Labs

High-Density Engineering Floors and Labs

  • Aggregate Wi-Fi 6/6E access points and wired dev workstations with C9200-24P-E or C9200-48P-E to build a non-blocking, multi-gigabit-ready access layer per floor.
  • Use 48-port PoE models to power dense clusters of IP phones, lab cameras, test rigs, and IoT sensors in R&D and QA areas without external power injectors.

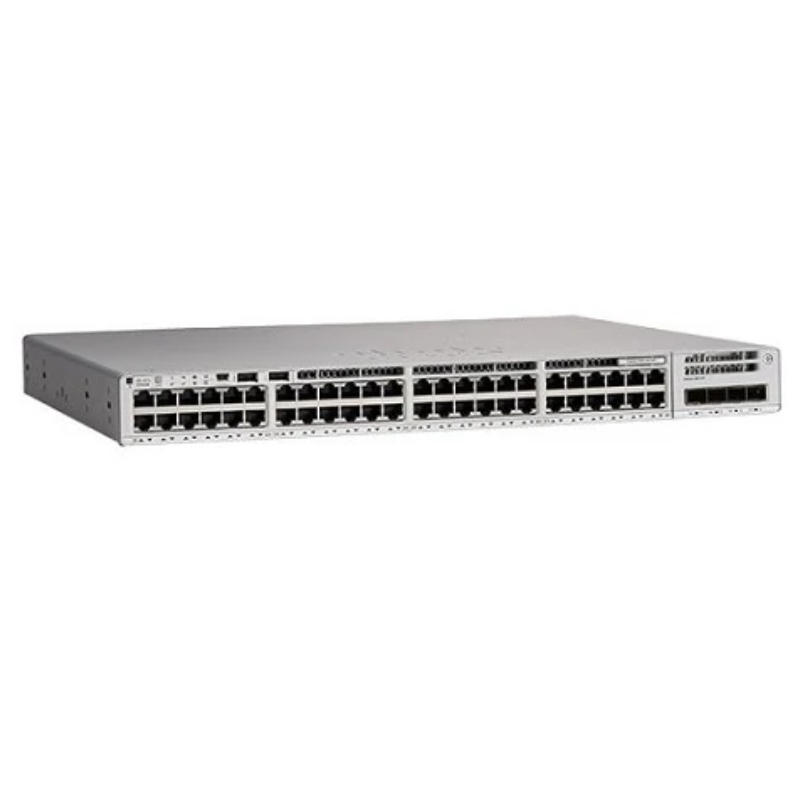

  • Deploy multi-gigabit C9200L-24PXG or C9200-48PXG at key wiring closets to handle bandwidth bursts from code builds, CI/CD pipelines, and heavy artifact downloads.
Open-Plan Collaboration Spaces and Meeting Areas

Open-Plan Collaboration Spaces and Meeting Areas

  • Use C9200-24P-E at floor edge to serve huddle spaces and hot-desking zones, balancing port-count with PoE for docking stations, thin clients, and IP phones.
  • Place C9200-48P-E or 9200L-48P models in centralized closets to connect conference rooms, wireless APs, and room scheduling panels across larger office wings.
  • Leverage multi-gigabit 24PXG/48PXG variants to connect Wi-Fi 6E APs and large collaboration endpoints for low-latency video conferencing and real-time whiteboarding.
Growth-Ready Scale-Up for Tech HQ and Campuses

Growth-Ready Scale-Up for Tech HQ and Campuses

  • Standardize on C9200-24P-E for smaller IDFs and edge closets, then scale to C9200-48P-E as teams, desks, and powered endpoints grow without redesigning the topology.
  • Use cost-optimized C9200L-24P/48P fixed-uplink models in secondary buildings or satellite wings while keeping 9200 modular variants for main office blocks.
  • Combine multi-gigabit 9200L-24PXG/48PXG uplinked to 10G/25G aggregation to future-proof for new Wi-Fi standards and higher per-user bandwidth demands over a 5–7 year lifecycle.
Branch Tech Offices and Remote R&D Sites

Branch Tech Offices and Remote R&D Sites

  • Deploy C9200L-24P-4G-E or 24P-4X-E in small branch offices to provide PoE for APs, IP phones, and security endpoints with simple fixed uplink design.
  • Use 48-port 9200L PoE models in regional engineering hubs where more wired ports are needed for dev benches, shared labs, and local storage appliances.
  • Mix 9200 and 9200L stacks in remote sites to separate business-user access from lab or test networks while maintaining consistent policy and QoS across locations.
Wi-Fi 6/6E and IoT-Heavy Smart Office Deployments

Wi-Fi 6/6E and IoT-Heavy Smart Office Deployments

  • Use C9200L-24PXG or 48PXG switches to provide multi-gigabit PoE to dense Wi-Fi 6/6E AP deployments in tech campuses, ensuring sufficient backhaul for high client concurrency.
  • Connect smart lighting, access control, occupancy sensors, and building automation systems to 24P/48P PoE models to consolidate OT and IT on a unified access fabric.
  • Position multi-gigabit access switches close to fiber handoffs and aggregation to minimize latency for AR/VR collaboration apps and high-frequency telemetry analytics.

Frequently Asked Questions

How do I decide between Cisco C9200-24P-E and C9200-48P-E for a tech office access layer?

  • Start from endpoints and growth: count current wired users, IP phones, Wi‑Fi 6/6E APs, IoT devices, and add a realistic 30–50% growth buffer; if the total ports per floor will exceed ~20 in year 2–3, the C9200-48P-E usually provides more headroom and reduces future recabling.
  • Use C9200-24P-E when you want lower initial CAPEX, are piloting a new tech office, or plan to stack multiple smaller switches per floor; choose C9200-48P-E when you prefer a single, denser access node per zone for easier power/cooling and wiring management.
  • Also consider PoE load: a 48-port full-PoE office with many APs and phones may require higher-capacity or dual power supplies, while smaller clusters (pods, labs, huddle areas) often map well to 24 ports.

When should I consider 9200L or Multi-Gigabit models instead of C9200-24P-E / 48P-E?

  • Choose C9200L-24P/48P (e.g., C9200L-24P-4X-E or C9200L-48P-4X-E) for cost-sensitive tech offices or branches where fixed uplinks and slightly reduced modularity are acceptable, but you still need enterprise PoE and stacking.
  • Select Multi-Gigabit models such as C9200L-24PXG-4X-E or C9200-48PXG-E when you are aggregating Wi‑Fi 6/6E or future Wi‑Fi 7 APs, or when power users and dev teams need 2.5G/5G access to workstation docks, small edge servers, or content creation rigs.
  • A common design is to use C9200-24P-E / 48P-E as the general office access layer, and reserve PXG (multi‑gig) variants for AP rows, collaboration zones, or AI/ML and dev pods that generate bursty east‑west traffic.

What compatibility checks are critical before deploying these switches in an existing Cisco network?

  • Validate software feature alignment: ensure the target IOS XE train supports your intended features (StackWise, Layer 3 routing, 802.1X, SD-Access, etc.) across both existing and new switches so that mixed stacks or adjacent layers operate consistently.
  • Check optics and uplinks: confirm SFP/SFP+ or SFP28 modules used on core/distribution switches are supported on C9200/C9200L series, especially for 10G/25G aggregation, and verify fiber type/length and connector standard for each uplink path.
  • Align PoE and endpoint expectations: verify that phones, APs, cameras, and IoT devices only need the PoE class the chosen SKU can realistically deliver per port and per switch under worst-case load; for borderline designs, consider oversizing PoE power supplies or spreading endpoints across stacks.

How should I plan PoE budget and power redundancy for Wi‑Fi 6/6E and IP telephony on C9200 access switches?

  • Start from the highest-draw devices—Wi‑Fi 6/6E APs and PTZ cameras—then add phones, thin clients, and IoT; sum their typical and worst‑case draw by PoE class and compare against the PoE budget of each candidate SKU at the chosen power supply rating.
  • On 48-port PoE models, fully loading all ports with high-class devices may exceed a single PSU’s practical PoE budget; mitigate this by segmenting high-draw endpoints, configuring PoE priorities, and using dual PSUs where your risk policy demands higher availability.
  • For tech offices running critical voice, collaboration, and dev tooling over PoE, consider how long UPS-backed power must last and design PoE redundancy (stacking, redundant PSUs, or diversified power feeds) around those RTO/RPO expectations, not just nameplate wattage figures.

What should I know about lifecycle, EOL risk, and future upgrade paths for C9200 and C9200L purchases?

  • Before finalizing models like C9200-24P-E, C9200-48P-E, C9200L-24PXG-4X-E, or C9200-48PXG-E, confirm their lifecycle status using the EOL / EOSL checker so you understand software support timelines and last-date-of-support risk.
  • When designing multi‑gigabit access for tech offices, plan for an upgrade horizon: for example, deploying PXG models where future Wi‑Fi 6E/7 or edge compute is expected, while keeping standard C9200/C9200L in lower-growth areas, so you avoid premature forklift upgrades.
  • If your offices follow a 3–5 year refresh cycle, consider balancing mature, stable models with newer ones to smooth future migrations and license transitions rather than replacing an entire campus edge at once.

How does Router-switch.com handle shipping, duties, and post-sales issues for these Cisco access switches?

  • Shipping options and lead times for models like C9200-24P-E, C9200-48P-E, C9200L-24P-4X-E, and multi‑gigabit variants are arranged case by case; for in‑stock items, dispatch and transit time will depend on product availability, destination country, and chosen carrier. For more information, see the overview of methods and regions at our shipping methods.
  • Taxes and customs duties are generally governed by local regulations in your destination country; you should verify your import policy, exemptions, and any value thresholds in advance. Practical guidance on duties and VAT handling is available at taxes and customs duties.
  • If a delivered switch is suspected faulty or damaged on arrival, you should follow the documented RMA steps to avoid delays in assessment or replacement; the step‑by‑step process is explained at instructions for returning faulty goods.
