Cisco Nexus 9336C FX2 vs 93180YC FX3 for 100G Spine Leaf

Cisco Nexus 9336C FX2 vs 93180YC FX3 for 100G Spine Leaf
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

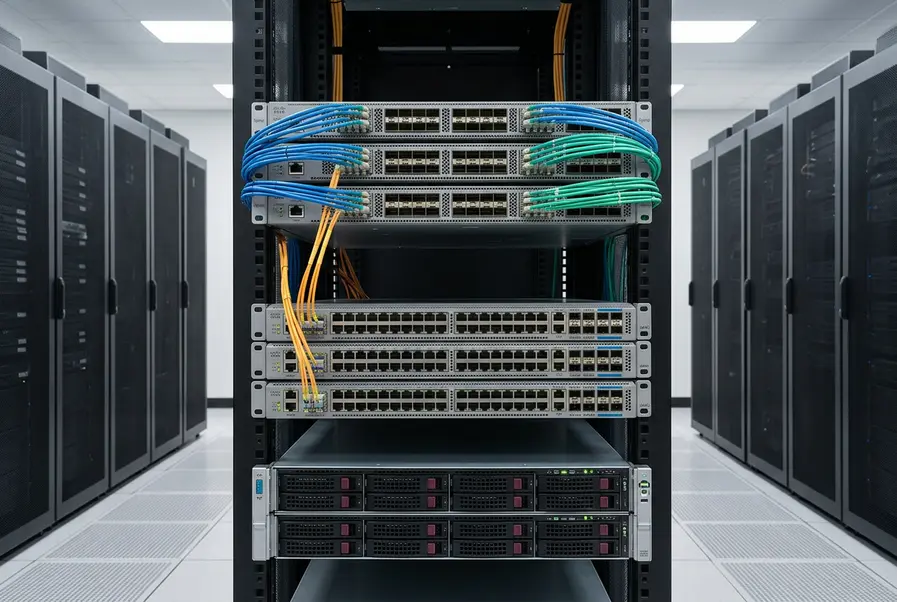

100G Spine-Leaf Upgrade Context

100G Spine-Leaf Upgrade Context

  • As data center teams push spine-leaf fabrics toward 100G to support AI workloads, virtualization density, and east-west traffic growth, the practical question is no longer if to upgrade, but how. Many environments already run 25G at the server edge and need to unlock 100G at the fabric core without disrupting existing operations, overprovisioning capacity, or inflating the total cost of ownership for the next refresh cycle.

    This section focuses on the decision points between building 100G fabrics around Cisco Nexus 9336C-FX2 spine switches versus Nexus 93180YC-FX3-based leaf designs. It frames how each platform impacts port economics, cabling strategy, oversubscription, and future 400G-readiness across typical deployment models, helping you align platform selection with real-world constraints such as budget, migration timeline, and scale-out roadmap.

Balancing 100G Spine-Leaf Cost and Scale

Choosing between high-density spine and flexible leaf for 100G fabrics is constrained by budget, oversubscription, optics, and future migration needs.

Balancing 100G Spine-Leaf Cost and Scale

  • Spine density vs. fabric scalability

    Sizing 100G spine ports for current and future leaf growth without overbuilding or locking into fixed port ceilings is difficult.

  • Port cost, optics, and TCO trade-offs

    Different 25G/100G port mixes, optics types, and cabling options change per-rack cost and long-term opex in non-obvious ways.

  • Migration path and compatibility risk

    Aligning 10/25G server access, 100G uplinks, and existing Nexus platforms while avoiding disruptive re-cabling or redesign is challenging.

Nexus 9336C-FX2 vs 93180YC-FX3 Cost Comparison

Compare Cisco Nexus 9336C-FX2 and 93180YC-FX3 to choose the most cost-effective path to 100G leaf-spine data center fabrics.

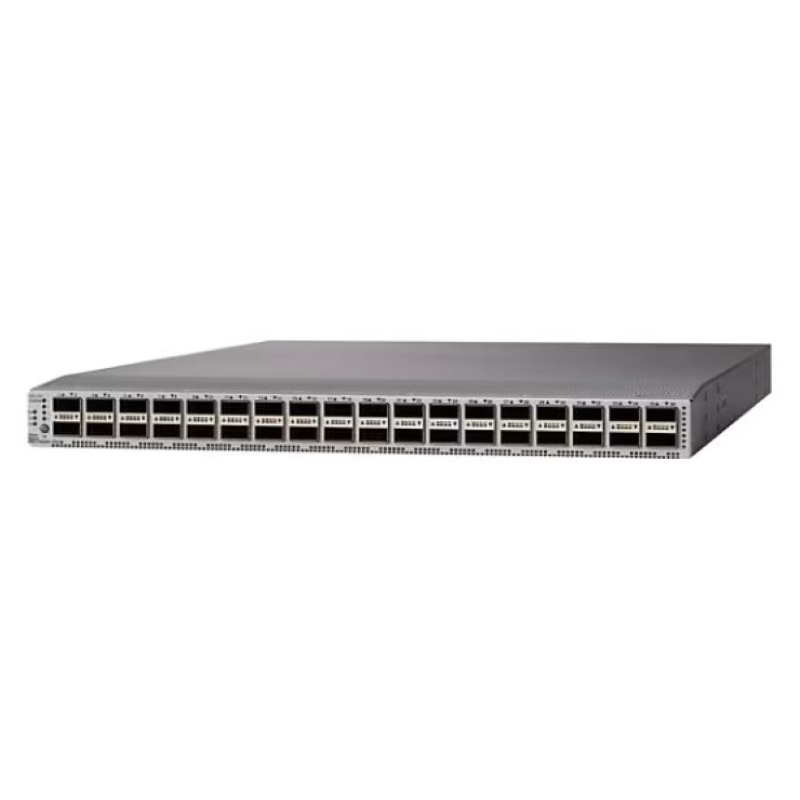

Feature Cisco Nexus 9336C-FX2 (Spine)
Cisco Nexus 93180YC-FX3 (Leaf)
 Business Impact
Primary deployment fit Fixed 1RU 100G/40G switch best suited as compact spine or small aggregation core; limited 25G server access capability. Fixed 1RU 25G/100G ToR leaf with dense 10/25G downlinks and 40/100G uplinks; designed for server access and fabric edge. Clarifies that 9336C-FX2 is optimized for spine/aggregation, while 93180YC-FX3 is the cost-efficient choice for ToR and incremental fabric expansion.
Port mix and server density High 100G port count ideal for inter‑switch links but can be underutilized if used for mixed server access, increasing cost per active port. High 10/25G to 40/100G ratio maximizes server-facing ports per RU, aligning hardware cost with real server density growth. For most upgrades, deploying 9336C-FX2 as spine and 93180YC-FX3 as leaf yields the best cost per server and per fabric link.
CapEx profile for 100G upgrade Higher upfront cost per chassis justified when heavily populated with 100G spine links; less attractive if leaf scale is still modest. Lower entry cost and granular scaling—add racks and bandwidth leaf by leaf without large upfront spend on core capacity. Start with a lean spine and invest progressively at the leaf layer, avoiding overprovisioned spine hardware in early upgrade phases.
Scalability and fabric growth Scales spine capacity efficiently as leaf count grows; good fit once many 100G leaf uplinks are in place. Scales rack-by-rack or pod-by-pod; supports phased 10G→25G→100G migration without forklift changes in the spine. Use 93180YC-FX3 to drive near-term growth, then expand 9336C-FX2 only when leaf count and traffic justify higher core density.
Operational complexity and flexibility Simpler role when dedicated to spine; using it for mixed roles (access + core) complicates cabling and policy separation. Standardizes on a common ToR platform for traditional VLAN, VXLAN EVPN, and mixed 10/25G environments, easing operations. Clear functional separation (9336C-FX2 as spine, 93180YC-FX3 as leaf) reduces troubleshooting time and simplifies lifecycle planning.
Cost-effectiveness per use case Most cost-effective when you already have or plan many 100G leaves and need high-bandwidth spine connectivity. Most cost-effective for organizations still building out 25G server access and gradually increasing 100G uplinks. Prioritize 93180YC-FX3 for immediate upgrades; treat 9336C-FX2 as a scalable spine investment once the leaf layer has grown.
Migration strategy from 10G Can terminate some 10/40G links but is not optimized as the primary platform for gradual 10G server migration. Supports mixed 10/25G ports and 40/100G uplinks, ideal for stepwise migration from 10G ToR to 25G/100G without disruption. Adopting 93180YC-FX3 first minimizes risk and avoids premature spend on spine bandwidth that current workloads may not yet require.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal Applications & Use Cases

Where 100G leaf-spine upgrades need a cost-optimized balance between Cisco Nexus 9336C-FX2 spines and 93180YC-FX3 leaf switches.

Enterprise Data Center Spine-Leaf Refresh to 100G

Enterprise Data Center Spine-Leaf Refresh to 100G

  • Migrate legacy 10G/40G spine-leaf fabrics to 25G server access with 100G uplinks using Nexus 93180YC-FX3 at the leaf and 9336C-FX2 as fixed 100G spines.
  • Standardize multiple on-premises data centers on a uniform 100G fabric design to simplify operations, licensing, and sparing across Nexus 9336C-FX2 and 93180YC-FX3 families.
  • Right-size oversubscription and port density for campus data centers hosting ERP, VDI, and collaboration workloads without over-investing in chassis-based spines.
Cloud & Virtualized Infrastructure Consolidation

Cloud & Virtualized Infrastructure Consolidation

  • Build high-density ToR leaf layers for VMware, OpenStack, or container platforms using 25G downlinks and 100G uplinks while assessing whether 9336C-FX2 or 93180YC-FX3 yields lower per-rack cost.
  • Consolidate fragmented pod-based networks into a shared 100G fabric that supports mixed bare-metal, virtualization, and Kubernetes clusters on common Nexus 9000 platforms.
  • Enable non-blocking east-west traffic between virtualized workloads by pairing appropriate 100G spine switches with 25G/100G leaf switches under a unified policy and automation model.
AI/Analytics and Latency-Sensitive Workloads at Scale

AI/Analytics and Latency-Sensitive Workloads at Scale

  • Design 100G spine-leaf fabrics for AI inference, big data, and real-time analytics clusters where the choice between 9336C-FX2 spine density and 93180YC-FX3 leaf economics impacts TCO.
  • Segment GPU, HPC, and storage traffic over dedicated 100G paths while using the right Nexus fixed switches to balance buffer capacity, ECMP scale, and cabling cost.
  • Deploy deterministic low-latency paths between compute and storage tiers without immediately moving to 400G, leveraging 100G Nexus spines and leaves as an interim step.
Service Provider Edge and Colocation Pods

Service Provider Edge and Colocation Pods

  • Build compact 100G edge or colo pods where 9336C-FX2 can act as a cost-effective spine for multiple racks of 25G access delivered by 93180YC-FX3 or compatible leaf switches.
  • Support network slicing, multi-tenant hosting, and carrier services by using 100G fixed-form-factor Nexus switches to terminate high-volume peering and aggregation links.
  • Optimize port utilization and optics spend in space-constrained colocation cages by choosing between high-port-density 100G spines and flexible 25G/100G leaf switches.
Brownfield 25G/100G Migration and Mixed-Generation Fabrics

Brownfield 25G/100G Migration and Mixed-Generation Fabrics

  • Phase in 100G spine capacity alongside existing 40G or mixed-generation Nexus environments, using 9336C-FX2 as an incremental spine while keeping 93180YC-FX3 at the access layer.
  • Introduce 25G server connectivity in selected racks first, and gradually upgrade uplinks to 100G as budget allows, comparing the per-port economics of different Nexus 9000 models.
  • Standardize on a fixed 100G Nexus platform set across new and legacy racks to simplify optics, cabling, and fabric operations during multi-year migration cycles.

Frequently Asked Questions

How do I decide between Cisco Nexus 9336C-FX2 and 93180YC-FX3 for a 100G spine-leaf upgrade?

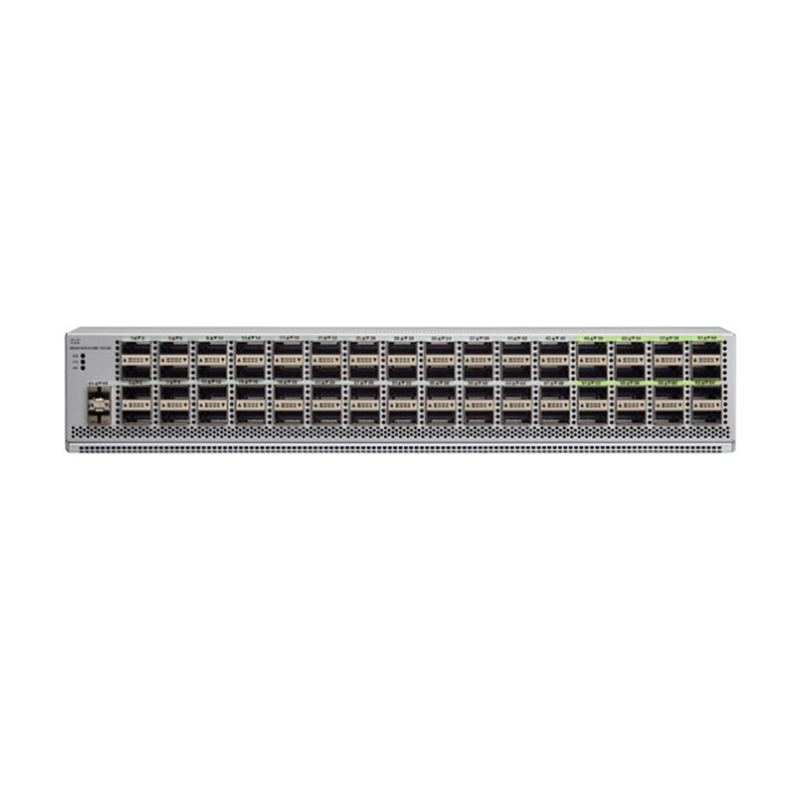

  • Use Nexus 9336C-FX2 (and related spine models such as N9K-C9332C / N9K-C9364C) primarily as spine switches when you need higher 100G port density, simple fixed-form-factor deployment, and room for future scale-out in a medium-to-large fabric.

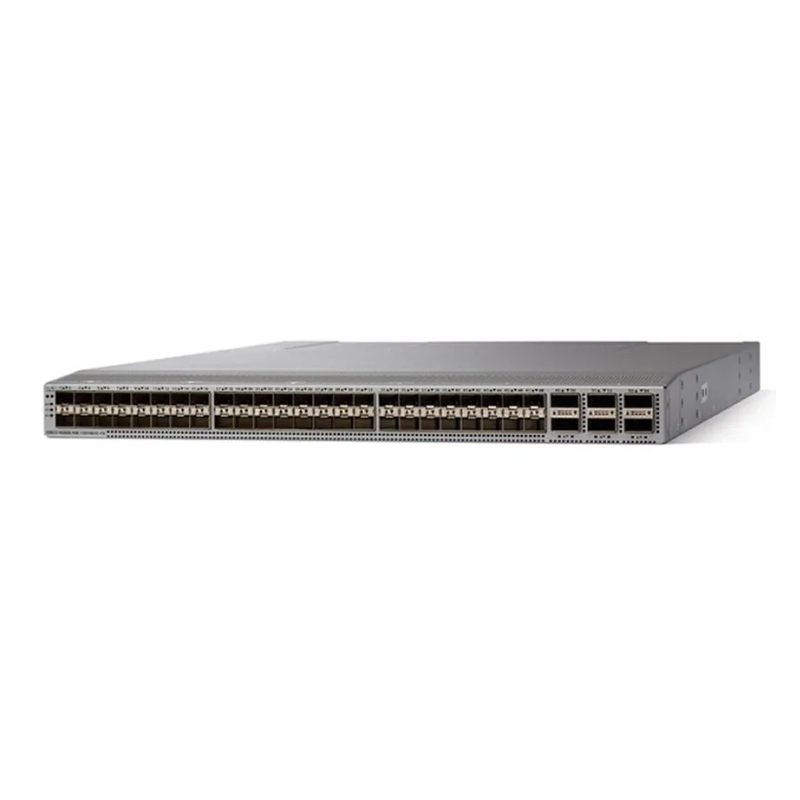

  • Choose Nexus 93180YC-FX3 / 93180YC-FX3S mainly as top-of-rack leaf switches when you require 10/25G server access with 40/100G uplinks, especially for brownfield migration from existing 10G to 25G while standardizing the core on 100G.
  • In mixed scenarios, a cost-effective design often uses 9336C-FX2 or similar as spine and 93180YC-FX3 as leaf, balancing port utilization and optics cost; our engineers can help you model CAPEX/OPEX trade-offs and oversubscription ratios via free CCIE support.
  • The most cost-effective choice depends on your target spine/leaf ratios, expected east–west traffic, and reuse of existing optics; share your current port counts and growth plan so we can propose a bill of materials based on actual utilization rather than theoretical maximums.

Can Cisco Nexus 9336C-FX2 spines interoperate with existing 25G/10G servers on 93180YC-FX3 leafs?

  • Yes, a common design is to deploy N9K-C9336C-FX2 / N9K-C9332C / N9K-C9364C as 100G spines and N9K-C93180YC-FX3 / FX3S as 25G/10G leafs, using 100G uplinks on the leafs and 25G (or 10G) downlinks to servers on the same 93180YC-FX3 platform.
  • Interoperability typically depends on matching transceiver types, breakout configurations (e.g., 100G-to-4x25G), and consistent NX-OS versions; misaligned optics or DAC/AOC selections are a more common risk than switch-model incompatibility.
  • When planning the upgrade, validate each planned optic or cable (25G SR/LR, 100G QSFP28, DAC/AOC) for both the leaf and spine SKUs; if you are reusing optics from older Nexus or Catalyst gear, confirm support status first with our team via free CCIE support.
  • For mixed-speed environments, design for clear migration stages (e.g., initial 10G access then 25G) to avoid stranded ports and ensure that all breakout wiring diagrams are agreed before cabling work starts.

What deployment risks should I watch for when upgrading to 100G fixed-form-factor Nexus spines and leafs?

  • Key risks include underestimating optics and cabling cost, over- or undersizing spine port counts (choosing between N9K-C9236C, N9K-C9332C, N9K-C9336C-FX2, N9K-C9364C), and fabric oversubscription that only becomes visible under peak workloads.
  • Another frequent risk is inconsistent NX-OS feature support across generations (e.g., earlier FX vs FX2 vs FX3 platforms) which can impact EVPN-VXLAN, telemetry, or MAC/route scale; always align on a validated software release for all planned SKUs before purchase.
  • Power and cooling budgets are often overlooked; consolidating to higher-density 100G can change hot-aisle/airflow patterns and per-rack power draw, so confirm your rack power and cooling envelopes, especially in mixed 9K generations.
  • To mitigate these risks, build a small proof-of-concept with one spine pair and a limited number of 93180YC-FX3 leafs, validate your cabling and control-plane design, and then replicate; our architects can help design a step-by-step migration plan through free CCIE support.

How can I check lifecycle status (EOL/EOSL) before investing in Nexus 9336C-FX2 or 93180YC-FX3?

  • Before finalizing your bill of materials for 100G spine-leaf fabrics, you should verify whether each candidate SKU (such as N9K-C9336C-FX2, N9K-C9332C, N9K-C9364C, C1-N9K-C9236C, N9K-C93180YC-FX3, N9K-C93240YC-FX2) is within your acceptable lifecycle window for new deployment.
  • Use our automated tool to look up EOL and EOSL status, including key milestones like last date of support, via EOL / EOSL checker; this helps you avoid locking new designs on platforms close to end-of-sale.
  • If a chosen model is approaching EOL, we can help you compare it with current alternatives and estimate the impact on your long-term fabric roadmap (software support horizon, spare strategy, and expansion flexibility).

What should I know about warranty, RMA, and returns for Nexus 100G spine and leaf switches?

  • For Cisco Nexus platforms like N9K-C9336C-FX2 and N9K-C93180YC-FX3, you should factor in both Cisco’s underlying hardware warranty and our own coverage and handling procedures when comparing total cost with other vendors.
  • If a device arrives DOA or fails during the covered period, you can follow our step-by-step RMA workflow described in return instructions; this helps you plan for spare strategy and maintenance windows in critical fabrics.
  • Details about how our warranty aligns with your fabric design (spares, replacement strategy, and multi-year operation) are summarized in warranty policy, and we recommend reviewing it alongside your internal SLAs and Cisco Smart Net or equivalent contracts.
  • Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

How are shipping, taxes, and customs handled when ordering Nexus 9336C-FX2 or 93180YC-FX3 for a data center build?

  • Shipping options and lead times for Nexus 100G spines and 25G/100G leafs depend on stock availability, destination country, and selected logistics method; you can review typical options and conditions in shipping methods.
  • For in-stock items, orders can often be dispatched relatively quickly, but actual delivery time will still depend on product availability, region, and customs clearance in your country; large projects may require phased deliveries or partial shipments that should be considered in your deployment timeline.
  • Import duties, VAT, and other taxes are subject to local regulations; to avoid unexpected costs in your 100G fabric project budget, please check our guidance at taxes and customs duties and align with your finance/procurement teams.
  • When planning a data center cutover, share your target dates and staging requirements early so we can suggest a procurement schedule that accounts for potential regional logistics or customs delays rather than assuming just-in-time delivery.
