Copper vs Fiber DAC AOC Cabling for NVIDIA ConnectX-7 400G

Copper vs Fiber DAC AOC Cabling for NVIDIA ConnectX-7 400G
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

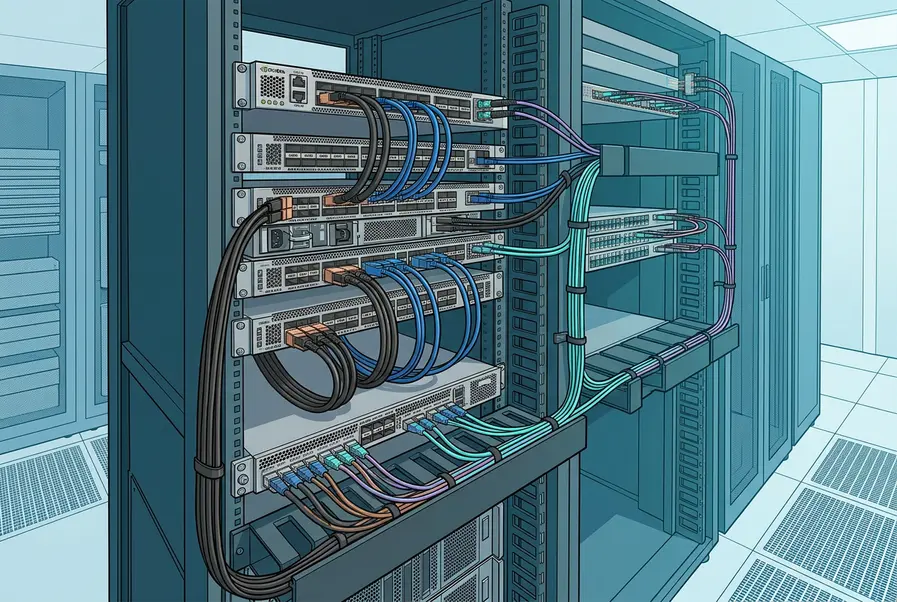

Link Cabling Design Context

Link Cabling Design Context

  • As GPU clusters scale and NVIDIA Mellanox ConnectX-7 NICs push 400G links deeper into servers and fabric switches, link cabling stops being a commodity choice. The balance between copper DAC, direct attach breakout, and 400G AOC determines how dense you can build AI racks, how far you can stretch server-to-switch runs, and how much power, latency, and thermal budget you consume per port.

    This section frames the key design decisions behind selecting copper versus fiber DAC/AOC interconnects for ConnectX-7 deployments, from short-reach top-of-rack wiring to longer in-rack and row-scale links. By mapping reach, power, bend-radius, and interoperability requirements to specific DAC and AOC options, the following sections help architects converge on a practical cabling mix using Mellanox and Cisco 400G QSFP-DD solutions.

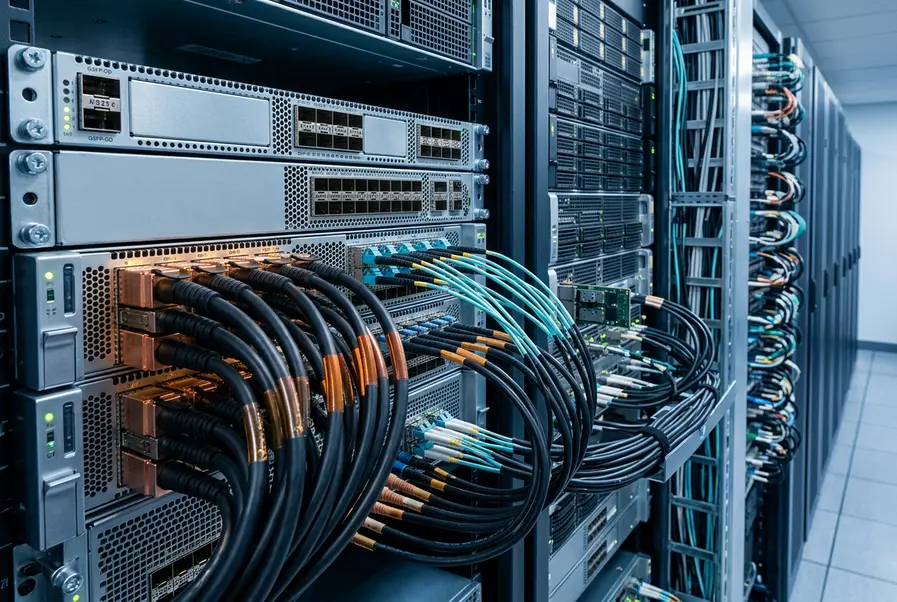

Balancing Copper and Fiber for 400G NIC Links

Selecting between copper DAC, AOC and fiber links for ConnectX-7 at 400G is constrained by reach, thermals, port density, cost and lifecycle evolution.

Balancing Copper and Fiber for 400G NIC Links

  • Short‑reach vs. long‑reach trade‑offs

    Designers must map each 400G link’s distance and layout to DAC or AOC choice without over‑engineering or creating future expansion dead ends.

  • Power, thermal and cost pressure

    Passive DAC cuts power and cost but is reach‑limited; AOC extends distance yet raises power draw, thermal load and per‑link budget complexity.

  • Interop and upgrade path uncertainty

    Mixing vendors and planning 800G/next‑gen optics requires care to avoid NIC‑switch‑cable incompatibilities and stranded QSFP‑DD investments.

Copper vs Fiber Links for ConnectX-7

Compare copper DAC against fiber AOC to choose the right 400G cabling strategy for NVIDIA ConnectX-7 AI and data center deployments.

Feature Copper 400G DAC Cables
Fiber 400G AOC Cables (hot)
 Business Impact
Deployment fit Best for very short, in-rack server-to-switch links (typically ≤2–3 m) where switches and NVIDIA ConnectX-7 NICs are co-located. Covers flexible in-rack and row-to-row runs up to tens of meters, suitable for dense AI racks and leaf–spine links. Map cabling type to reach: DAC for adjacent gear, AOC for flexible rack and row layouts without re-architecting the fabric.
Performance & signal integrity Excellent signal quality at very short distances, but performance and eye margins degrade quickly as length increases beyond a few meters. Active optics maintain signal integrity over long distances with better margins, especially in high-rad, high-density AI clusters. Use DAC where physics is trivial; rely on AOC to maintain 400G stability as layouts scale and pathways become electrically noisy.
Thermals & power Zero active components in the cable itself, no additional power draw but thicker copper bundles impede airflow in dense GPU servers and top-of-rack switches. Requires module power at each end, but thinner, lighter fiber bundles improve airflow in hot AI racks and high-power GPU nodes. In thermally constrained AI racks, airflow gains from AOC often outweigh the small incremental power cost.
Cable manageability & density Stiff, thick, and heavier; harder to bend in crowded racks and can stress QSFP-DD ports when space is tight. Slim, lightweight, and highly flexible; easier high-density routing, labeling, and Moves/Adds/Changes in large fabrics. For environments with frequent re-cabling or very high port density, AOC simplifies operations and reduces risk of port damage.
Cost profile & lifecycle Lowest upfront cost per 400G link but limited reach options; replacements may be needed if rack layouts change or move to a different row. Higher initial cost per link, but reach and reusability across different racks and rows reduce stranded cabling as the cluster evolves. DAC optimizes initial CAPEX for fixed layouts; AOC optimizes total cost of ownership in growing or frequently reconfigured AI clusters.
Vendor & interoperability Optimized for NVIDIA ConnectX-7 to NVIDIA-compatible switches at short reach; more sensitive to PHY differences and link budget limits over distance. Designed for NVIDIA ConnectX-7 and also supports wider vendor interoperability across switches and fabrics over longer optical paths. If you anticipate multi-vendor fabrics or topology evolution, AOC reduces interoperability headaches versus copper constraints.
Best-use scenarios Cost-sensitive, fixed top-of-rack designs; short server-to-switch links inside a single rack or adjacent racks in a small pod. Large-scale AI training clusters, GPU fabrics spanning multiple racks/rows, and spine–leaf interconnects where reach and manageability are critical. Combine both: use copper DAC only where it is clearly sufficient, and standardize on AOC for AI-scale fabrics to keep the network future-proof.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal Applications & Use Cases

Where copper DAC and fiber AOC links best fit around NVIDIA Mellanox ConnectX-7 400G server and spine/leaf deployments.

AI Training Pods and GPU Clusters in a Single Rack

AI Training Pods and GPU Clusters in a Single Rack

  • Use short-reach Mellanox 400G DAC cables to link ConnectX-7 GPUs to top-of-rack 400G switches inside dense AI training racks where distance is typically under 3m.
  • Deploy Mellanox 400G AOC cables for connecting dual-rail or multi-rail ConnectX-7 GPUs to aggregation switches when servers span the full rack height and copper bend-radius becomes restrictive.
  • Mix DAC for latency-critical intra-chassis or side-by-side GPU servers and AOC for cross-rack topologies within the same AI pod to balance signal integrity, airflow and cable manageability.
Leaf-Spine Fabrics in Modern Data Centers

Leaf-Spine Fabrics in Modern Data Centers

  • Use Mellanox 400G DAC assemblies for short hop server-to-leaf and leaf-to-spine connections in contiguous racks where patch panels and switches are co-located in the same row.
  • Apply Mellanox and Cisco 400G AOC cabling for leaf-to-spine runs that must cross cold and hot aisles, cable trays or zone distribution frames where copper length and weight are limiting factors.
  • Standardize on 400G AOC for spine-to-core or fabric extension links that traverse multiple rows, simplifying cable routing while preserving 400G QSFP-DD interoperability with ConnectX-7 NICs.
Enterprise Private Cloud and Virtualization Clusters

Enterprise Private Cloud and Virtualization Clusters

  • Use 400G DAC between ConnectX-7 equipped virtualization hosts and top-of-rack switches in compact enterprise private cloud pods where equipment is stacked within a few rack units.
  • Choose 400G AOC links for connecting hyperconverged or storage nodes across split racks in the same row, where the additional reach beyond passive copper is needed without sacrificing port density.
  • Combine DAC for fixed, predictable host-to-switch links and AOC for flexible patching to network aggregation or DCI gateways to accommodate phased private cloud expansions.
High-Performance Storage and Low-Latency Fabrics

High-Performance Storage and Low-Latency Fabrics

  • Deploy 400G DAC between ConnectX-7 NICs and NVMe-oF / RoCEv2 enabled switches for ultra-low-latency storage access inside the same rack or adjacent racks with well-controlled distances.
  • Adopt 400G AOC for latency-sensitive storage links where switch-to-switch or switch-to-server paths must span multiple racks and structured cabling routes, maintaining signal quality at 400G speeds.
  • Separate traffic classes by using DAC for primary lossless east-west storage traffic and AOC for mirrored, backup or replication links that run further into aggregation and disaster recovery domains.
Hyperscale and Multi-Tenant Cloud Environments

Hyperscale and Multi-Tenant Cloud Environments

  • Use cost-efficient Mellanox 400G DAC cabling in hyperscale server blocks where racks are highly standardized and server-to-leaf distances are fixed and short across thousands of ConnectX-7 ports.
  • Leverage Cisco and Mellanox 400G AOC cables for multi-tenant aggregation zones that interconnect pods, cages or availability zones where long runs and strict separation paths are required.
  • Adopt a structured design that reserves DAC for high-volume intra-pod interconnects and AOC for inter-pod, inter-row and cross-domain links to simplify capacity planning and lifecycle management.

Frequently Asked Questions

How do I decide between 400G copper DAC and 400G AOC for ConnectX-7 links in my racks?

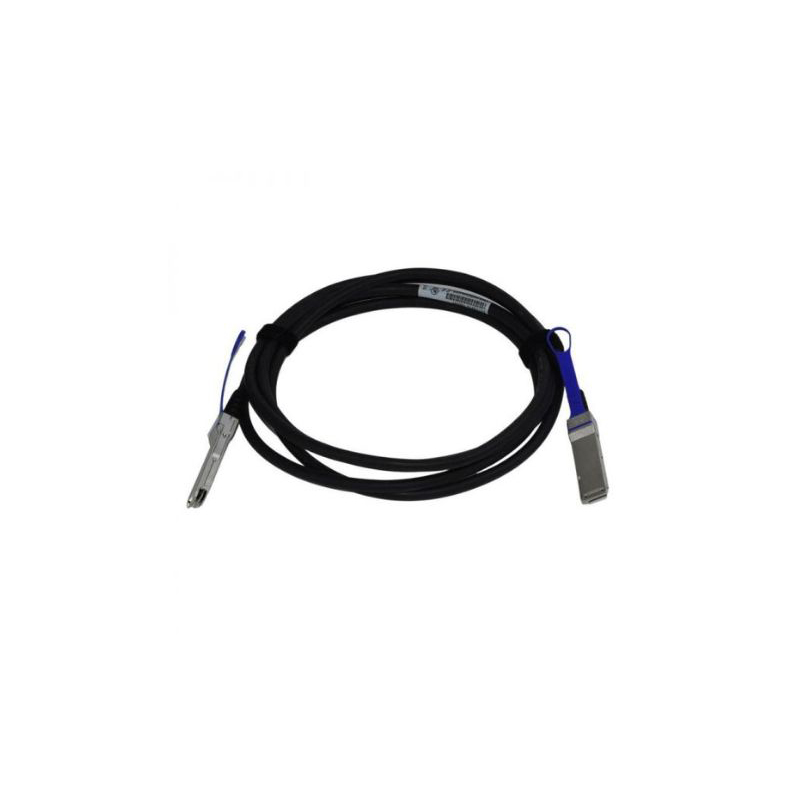

  • For ConnectX-7 server-to-top-of-rack switch links under 2–3 m inside the same rack, passive copper DACs such as MLNX:MCP1660-W00AE30, MLNX:MCP1660-W01AE30, MLNX:MCP1660-W02AE26 and MLNX:MCP7Y70-H002 are typically more cost-effective, simpler to deploy, and lower power.

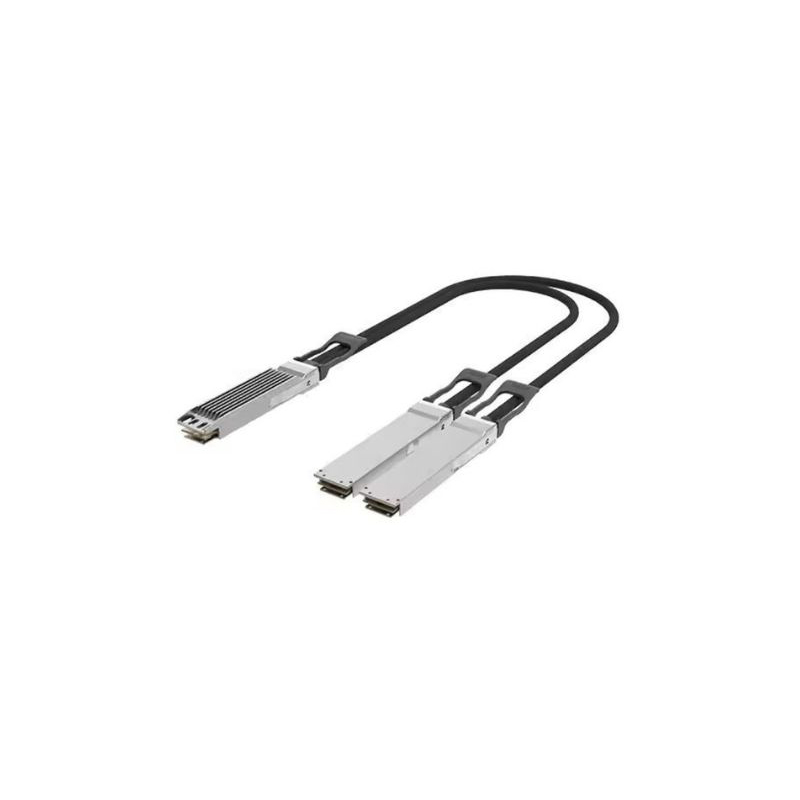

  • When you need 5–30 m reach, cross-rack runs, or more flexible cable routing in dense AI and GPU racks, 400G AOCs such as MLNX:MFA7U10-H005 / MFA7U10-H030 or Cisco QDD-400-AOCxM become more appropriate because of lower weight, better airflow, and longer reach.
  • As a practical rule, shortlist DAC for short, fixed in-rack connections and AOC for anything involving multiple racks or frequent re-cabling; then refine by required distance, port density, and power budget of the servers and switches.

Are Mellanox 400G DAC/AOC part numbers here fully compatible with NVIDIA ConnectX-7 NIC ports?

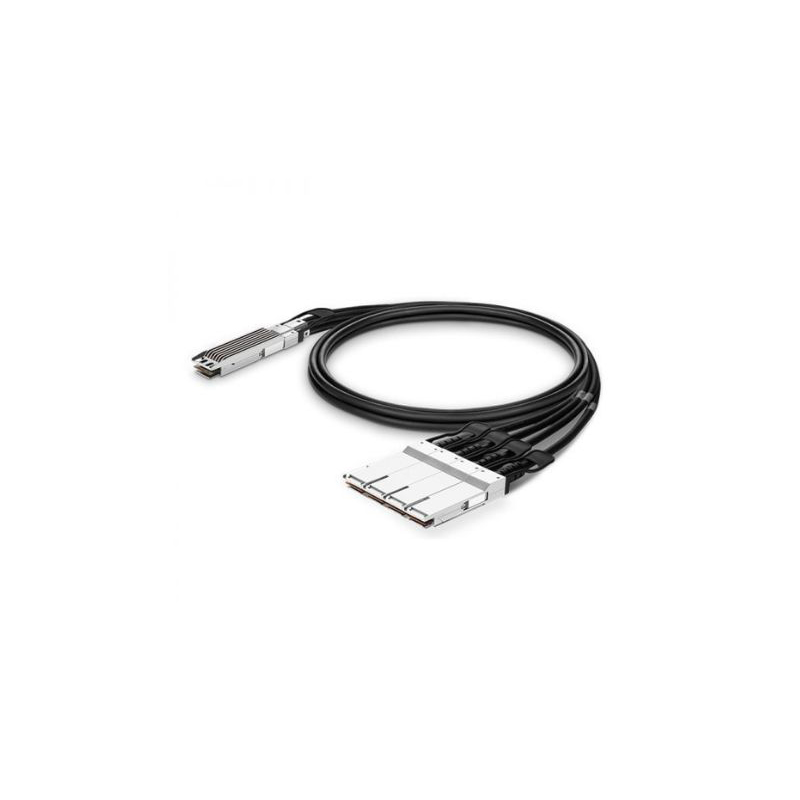

  • The Mellanox/NVIDIA-branded SKUs listed (e.g., MLNX:MCP1660-W00AE30, MLNX:MCP7Y70-H002, MLNX:MFA7U10-H005, MLNX:MFA7U10-H030, MLNX:C-DQ8FNM005-H0-M) are designed and coded for NVIDIA 400G QSFP112/QSFP-DD ecosystems, including ConnectX-7 NICs used in modern AI and data center servers.

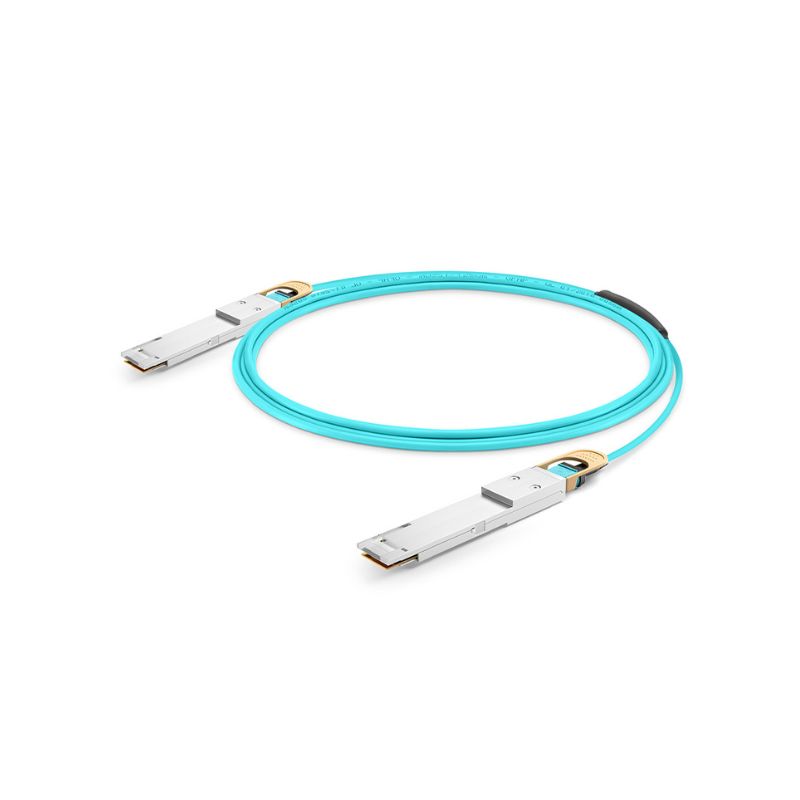

  • In mixed-vendor environments (e.g., ConnectX-7 to non-NVIDIA 400G switches, or Cisco QDD-400-AOCxM connected to NVIDIA ports), you should verify both vendors’ interoperability matrices and, where required, consider vendor-coded ends or breakouts to avoid port lockout or downspeeding.
  • If you are unsure about coding, transceiver EEPROM profiles, or OS-version dependencies, you can pre-validate with our networking experts via free CCIE support before placing a volume order. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

What deployment pitfalls should I avoid when cabling ConnectX-7 400G NICs with DAC and AOC links?

  • For high-density GPU or storage nodes, over-bending copper DACs can stress connectors and increase insertion loss; always observe the minimum bend radius and avoid sharp cable trays, especially for 400G QSFP112 assemblies like MLNX:MCP1660-W02AE26.
  • For AOCs such as MLNX:MFA7U10-H005-FLT or Cisco QDD-400-AOCxM, plan patch panel and cable raceway paths in advance; although they are lighter, the optical engine and fiber can be more sensitive to crush and tension than copper.
  • On ConnectX-7 endpoints, confirm that the NIC firmware, host drivers, and switch OS support your intended port speed and FEC mode; in AI clusters with RoCE and congestion control, it is common to validate lossless settings and MTU on a test fabric before rolling out hundreds of 400G links.

How should I plan for lifecycle, EOL, and future scalability when selecting these 400G DAC/AOC SKUs?

  • Because 400G fabrics in AI and HPC clusters often scale in phases, it is important to choose cable lengths and coding that will remain supported across switch and NIC refresh cycles, not only for the current generation of ConnectX-7 servers.
  • Before freezing on specific SKUs like MLNX:MCP7Y70-H002 or Cisco QDD-400-AOC10M, check whether your switches or planned spine/leaf upgrades have announced EOL/EOSL timelines and confirm that their 400G ports will continue to accept these cable types and coding profiles.
  • You can quickly review vendor status and plan migration windows using the EOL / EOSL checker, then align your copper vs. AOC mix with your 3–5 year fabric roadmap.

What should I know about lead time, shipping, and customs for bulk 400G cabling orders?

  • For large AI or data center rollouts using many Mellanox 400G DACs and AOCs, lead time will depend on the exact SKUs (lengths, coding options) and current stock levels; for in-stock items, international shipping time will vary by destination country, logistics method, and local import processes rather than being one fixed SLA.
  • To reduce project risk, many customers split orders (e.g., first wave for lab validation, second wave for full deployment) and align delivery with rack-build schedules; discussing your bill of materials early allows us to suggest alternates (e.g., different lengths in the same family) when one specific part number has a longer procurement cycle.
  • You can review possible logistics options and conditions via our shipping methods overview, and for cross-border deployments factor in duties and VAT using the guidance at taxes and customs duties.

How are warranty, after-sales support, and returns handled for these 400G DAC and AOC products?

  • Mellanox/NVIDIA and Cisco 400G DAC/AOC items typically follow the respective vendor’s hardware warranty model combined with Router-switch.com’s own handling procedures, but the exact coverage, duration, and terms can differ between product families and regions.
  • Before deployment in a critical AI cluster, many customers review both the manufacturer’s conditions and our site-level policies, including repair/replace workflows and DOA handling; you can see an overview of our coverage on the warranty policy page and review how to ship back faulty cables or optics via return instructions.
  • For complex or multi-site projects, you can also engage our technical team for configuration and interoperability questions through free CCIE support to help minimize RMA risk in design and rollout. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
