Tunnel Video Surveillance VLAN Stability over Fiber

Tunnel Video Surveillance VLAN Stability over Fiber
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

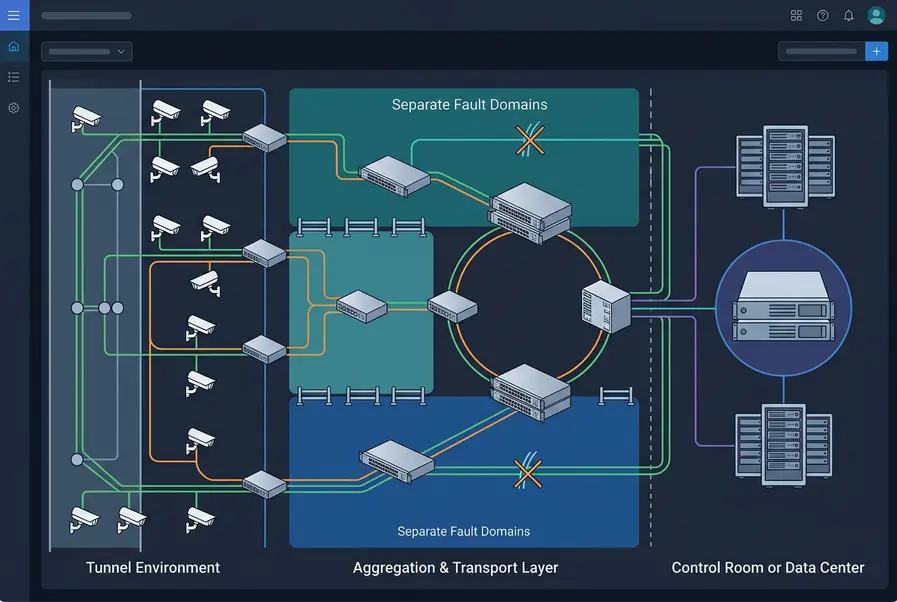

Stabilizing Tunnel Video Networks

Stabilizing Tunnel Video Networks

  • Tunnel video surveillance networks push VLAN designs and optical uplinks to their limits. Cameras are often distributed over long distances, chained through harsh environments, and backhauled to centralized NVRs or control rooms. When switching layers, optical transport, and VLAN boundaries are not aligned, a single fiber fault, loop, or mis-tagged uplink can disrupt visibility across multiple tunnel segments at once.

    This section frames the decision points for building a stable surveillance VLAN architecture beyond the NVR: how to separate fault domains, place aggregation switches, and select optical transmission systems that keep video streams intact during fiber cuts or node failures. The following guidance links design choices to concrete options across Huawei OptiX transport, Arista fiber aggregation, and Cisco data center switching.

Stabilizing Tunnel Video VLAN over Fiber

Designing stable surveillance VLANs in long tunnels is hard due to optical distance, multi-vendor switching, fault isolation, and NVR-edge limits.

Stabilizing Tunnel Video VLAN over Fiber

  • VLAN stability over long optical paths

    Extended fiber, multiple OTN hops, and high camera counts strain multicast, QoS, and loop control beyond simple NVR-centric designs.

  • Fault isolation beyond the NVR edge

    Distinguishing camera, switch, OTN, or fiber faults is difficult, delaying recovery and risking blind spots in critical tunnel sections.

  • Multi-vendor aggregation and scale limits

    Aligning VLAN, MTU, timing, and redundancy across OTN and aggregation switches is complex and can cap scale or create hidden failure modes.

Tunnel Video VLAN Stability Priorities

Three design decisions to keep tunnel video VLANs stable beyond the NVR, even over long-haul fiber.

Deterministic optical backbone

Use Huawei OptiX DWDM/OTN to harden long tunnel video uplinks against loss and jitter.

Fault-domain aware aggregation

Segment cameras by tunnel zone on Arista fiber switches to contain faults and simplify isolation.

Core-grade VLAN resilience

Anchor surveillance VLANs on Cisco DC switches for fast convergence and clear handoff to control systems.

Tunnel Video VLAN Transport Options Comparison

Compare L2 switching-only, optical transport, and hybrid designs to choose the most resilient video surveillance VLAN path for long tunnels.

Feature Switch-Only Aggregation Optical Transport Backbone
Hybrid Switching + Optical (hot)
 Operational Impact
Deployment fit Simple L2/L3 switches aggregate cameras and uplink directly over fiber/Ethernet back to NVR or core. Dedicated Huawei OptiX OSN platforms create a long-haul optical backbone, carrying multiple VLANs over DWDM/OTN. Arista/Cisco switches aggregate VLANs locally, then hand off to Huawei OptiX OSN for backbone transport and segmentation. Aligns topology with tunnel length: keep access simple, but use carrier-grade transport for distance and protection.
Distance & resilience Reliable for short to medium runs; single or few uplinks can become distance and failure bottlenecks in long tunnels. Optimized for tens of km+ with optical protection (e.g. ring, 1+1) but less granular control at camera access edge. Combines resilient DWDM/OTN rings with redundant switch uplinks and loop-free access design per tunnel segment. Suitable when you must keep video online across long tunnel spans and tolerate fiber cuts or card failures.
VLAN stability & fault domains All faults (loops, broadcast storms, misconfig) stay in the same Ethernet domain; harder to isolate per tunnel section. Backbone failures are isolated optically, but misbehaving access segments can still impact shared transport if not contained. Access switches define clear VLAN and fault domains; OSN backbone carries them as services, limiting blast radius. Reduces “all-cameras down” incidents by containing faults to a segment instead of the entire tunnel or NVR side.
Latency & video quality Low latency when paths are short; jitter and loss may rise over long daisy chains or oversubscribed uplinks. Very predictable latency over long distance; high capacity but requires mapping VLANs to optical services carefully. Keeps access hops short and clean, then leverages deterministic optical transport for long-haul stability. Provides smooth video and fast PTZ control even when control room is far from tunnel segments.
Scalability & future expansion Scaling means adding more switches or uplinks; spanning-tree and VLAN design become increasingly complex. Backbone scales by adding wavelengths/slots, but access VLAN design still needs careful planning at edges. Backbone and edge scale independently: add wavelengths on OSN, add ports/VLANs on switches without redesigning end-to-end. Lets you grow camera count or add analytics traffic without redoing the entire network architecture.
Monitoring & fault isolation Relies on switch logs and basic SNMP; correlating faults along the tunnel is manual and time-consuming. Telecom-grade OAM, performance monitoring, and alarms on optical paths, but limited visibility into per-camera VLAN issues. Use switch telemetry plus OSN OAM to see per-segment, per-service health from camera to control room. Speeds root cause analysis, enabling faster recovery when a specific tunnel section or link degrades.
Cost & complexity profile Lowest CapEx and simpler skills, but higher risk of large-scale outages and harder troubleshooting as the tunnel grows. Higher initial CapEx and planning effort; strong for critical sites where uptime outweighs cost concerns. Balanced: invest in optical where distance and availability demand it, keep switching familiar and manageable at the edge. Optimizes budget for safety-critical tunnels: pay for resilience where it matters, avoid over-building at the edge.
Best-use scenarios Short tunnels, fewer cameras, moderate uptime requirements, and limited fiber distances to the NVR/core. Very long tunnels, multi-tunnel corridors, or shared backbone carrying several critical services beyond CCTV. Strategic tunnels with many cameras, strict SLA, and long distances where both uptime and granular control are mandatory. A practical default when designing new tunnel surveillance networks that must be stable, scalable, and fault-tolerant.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal Applications & Use Cases

Designed for tunnel video surveillance networks that demand deterministic VLAN behavior, resilient optical transport, and fast isolation beyond the NVR tier.

Long-Radius Tunnel Video Backbones Over Fiber

Long-Radius Tunnel Video Backbones Over Fiber

  • Deploy Huawei OptiX OSN platforms as the optical backbone to carry consolidated surveillance VLANs across multi-kilometer road, metro, or rail tunnels where direct Ethernet runs are impractical.
  • Use Arista 7050X3 or 7300X3 switches at tunnel portals to aggregate camera rings, map VLANs to optical circuits, and maintain deterministic paths back to the control room.
  • Combine Cisco Nexus or ACI switches in the core to terminate long-distance optical uplinks, enforce VLAN separation, and provide redundant aggregation for multiple tunnel sections.
High-Density Camera Aggregation and VLAN Segmentation

High-Density Camera Aggregation and VLAN Segmentation

  • Aggregate hundreds of IP cameras from multiple tunnel galleries into Arista fiber switches, using per-gallery surveillance VLANs to contain faults and broadcast domains.
  • Connect Arista aggregation to Cisco data center switches to extend VLANs only where required, limiting east-west traffic and stabilizing NVR and VMS performance.
  • Map critical surveillance VLANs onto dedicated Huawei OptiX OSN services to guarantee bandwidth and low jitter between edge aggregation sites and central recording clusters.
Safety-Critical Tunnel Operations and Control Rooms

Safety-Critical Tunnel Operations and Control Rooms

  • Build a resilient control room aggregation layer with Cisco Nexus or ACI switches, terminating all tunnel surveillance VLANs and integrating them with traffic control, fire, and public announcement systems.
  • Use Huawei OptiX OSN rings or meshes between the control center and tunnel technical rooms to keep video streams online during fiber cuts, equipment failures, or scheduled maintenance.
  • Implement Arista switches at intermediate nodes to locally break out surveillance VLANs for emergency phones, incident response kiosks, and safety signage without impacting NVR stability.
Cross-Operator and Multi-Agency Tunnel Surveillance Sharing

Cross-Operator and Multi-Agency Tunnel Surveillance Sharing

  • Host a shared Huawei OptiX OSN transport layer to carry logically separated surveillance VLANs for highway operators, police, and emergency services over the same optical footprint.
  • Terminate each agency’s VLANs on dedicated Cisco switches in the data center, applying VRF and policy constructs to prevent cross-domain leakage while allowing controlled video sharing.
  • Use Arista aggregation switches at tunnel exits to tag and steer camera feeds into different VLANs based on operator, zone, or incident type, simplifying multi-agency workflows.
Modernization of Legacy Tunnel CCTV Networks

Modernization of Legacy Tunnel CCTV Networks

  • Replace aging SDI or analog video backbones with Huawei OptiX OSN packet transport, encapsulating IP surveillance VLANs while reusing existing ducts and long-haul fiber routes.
  • Introduce Arista fiber switches at legacy technical rooms to migrate from unmanaged switches to standards-based VLAN segmentation, link aggregation, and rapid failover for cameras.
  • Integrate the modernized tunnel surveillance fabric into a Cisco-based core or data center, aligning VLAN design with new NVR clusters, AI video analytics, and SOC monitoring tools.

Frequently Asked Questions

How do I choose between Huawei OptiX OSN platforms for a long tunnel video surveillance backbone?

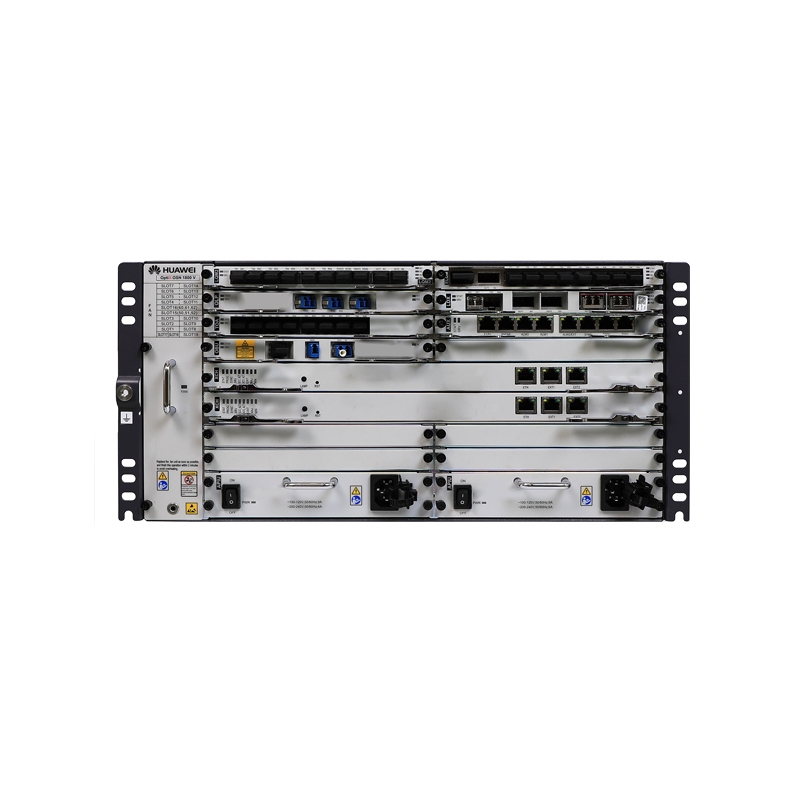

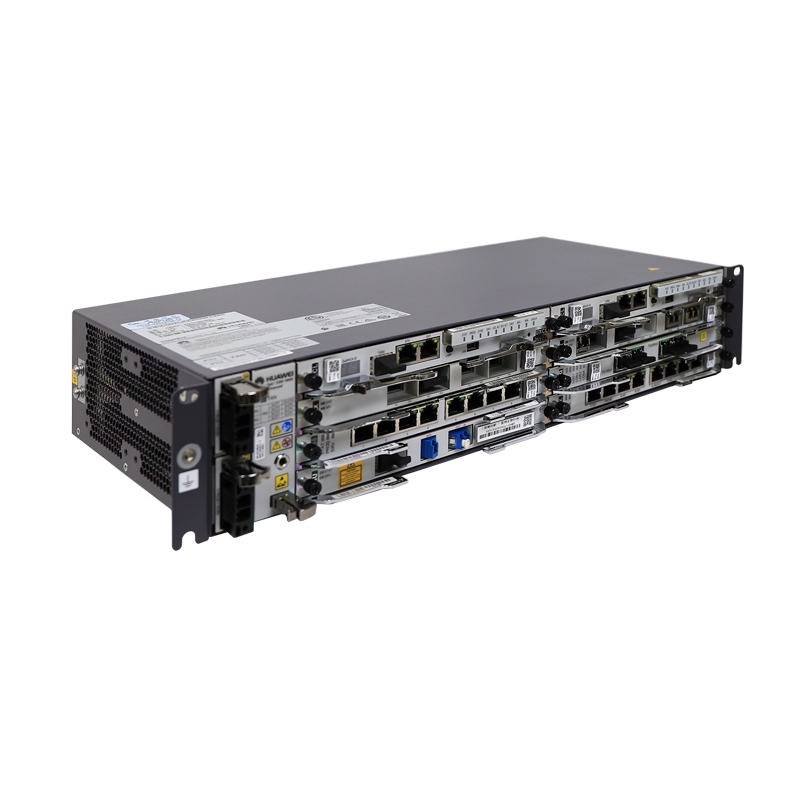

  • For single-tube or short-to-medium tunnels with limited camera count and simple VLAN structures, compact nodes such as Huawei-OptiX-OSN-1800-2-E or Huawei-OptiX-OSN-1800-V are typically more suitable because they fit constrained spaces and lower power budgets.

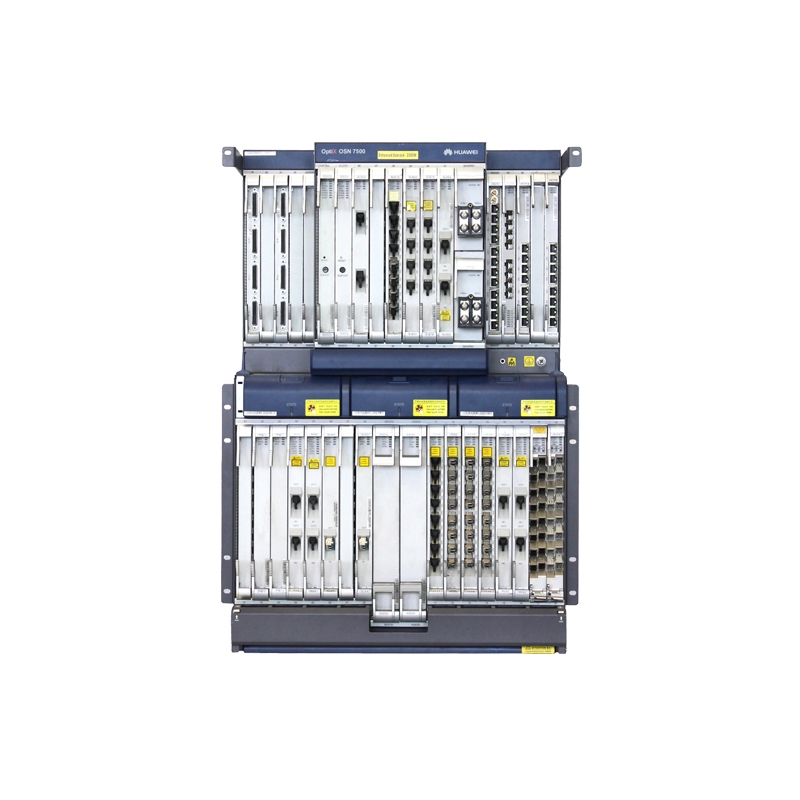

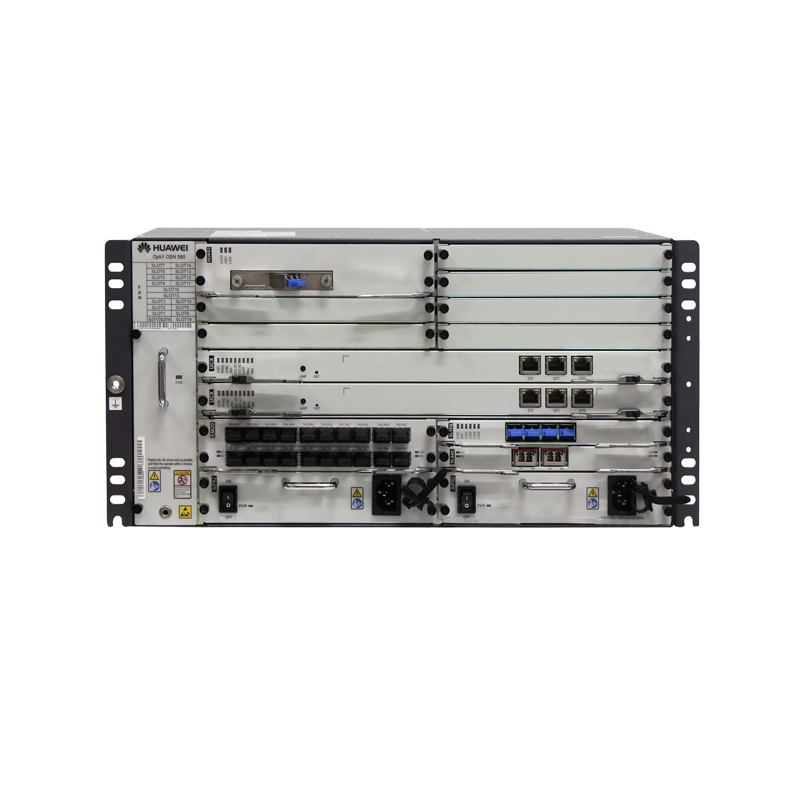

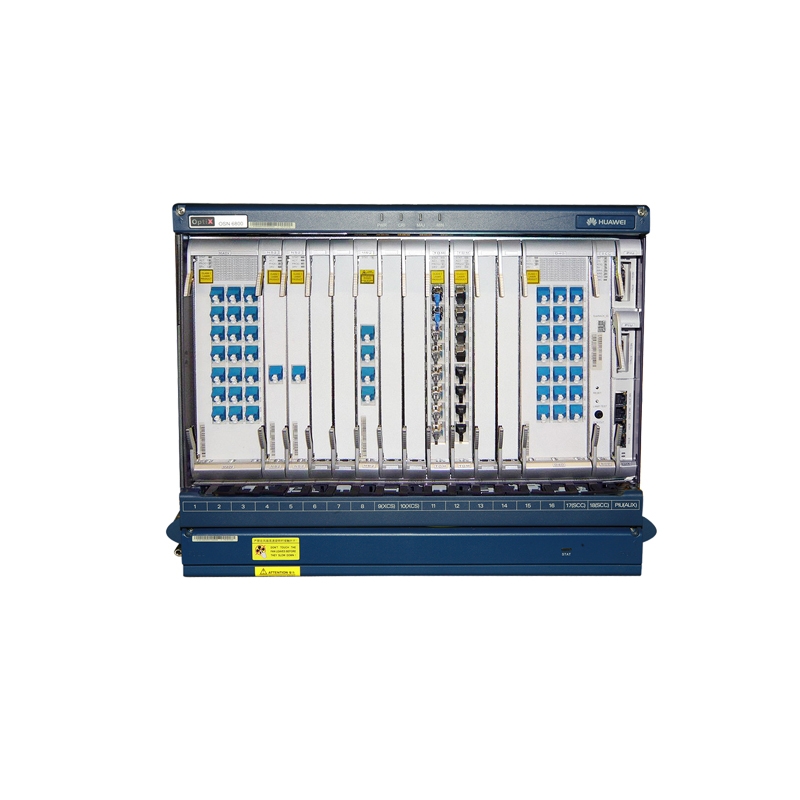

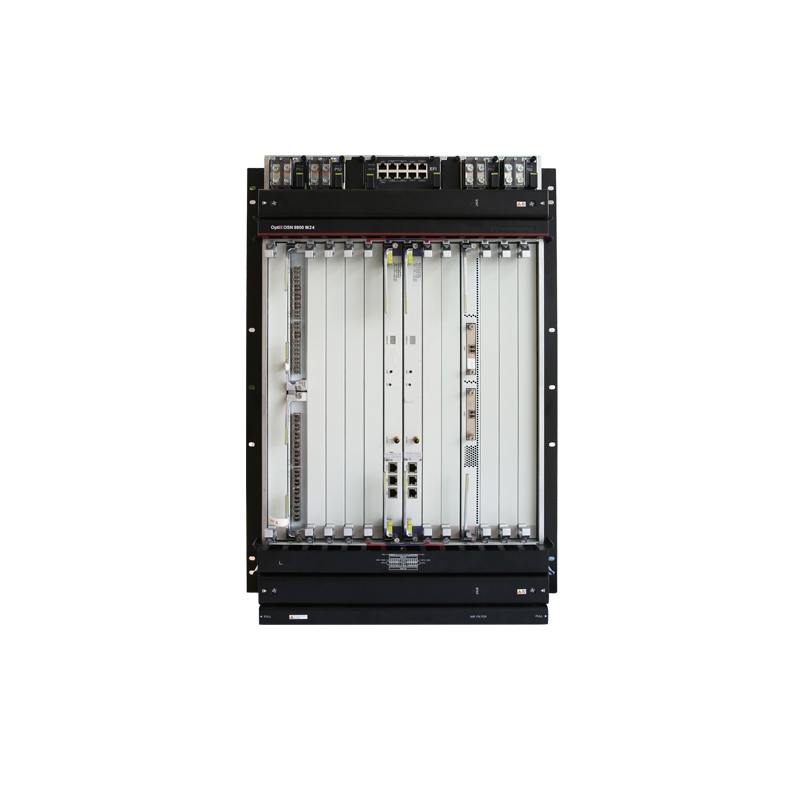

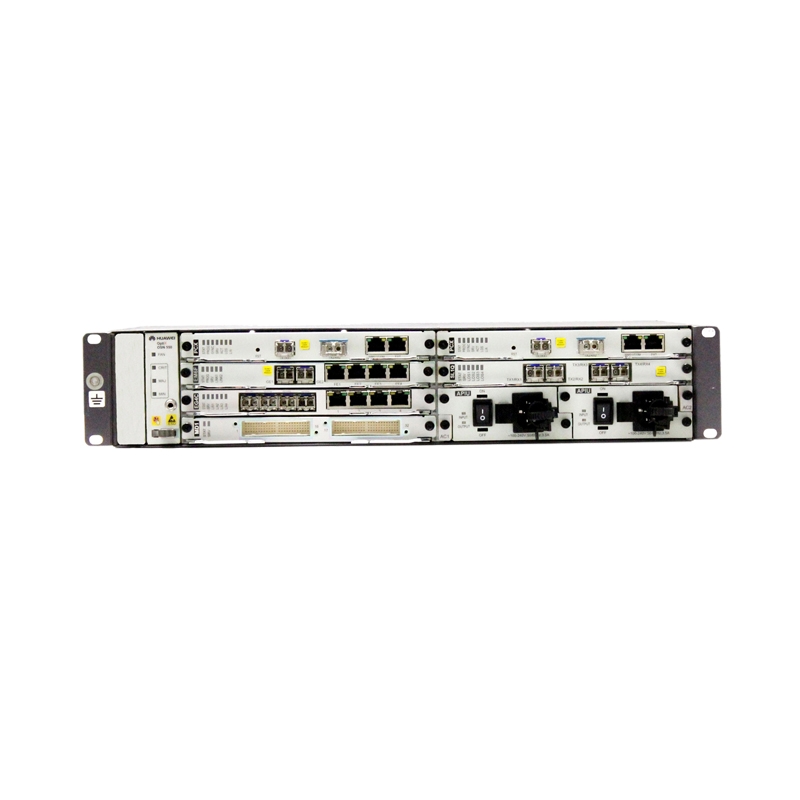

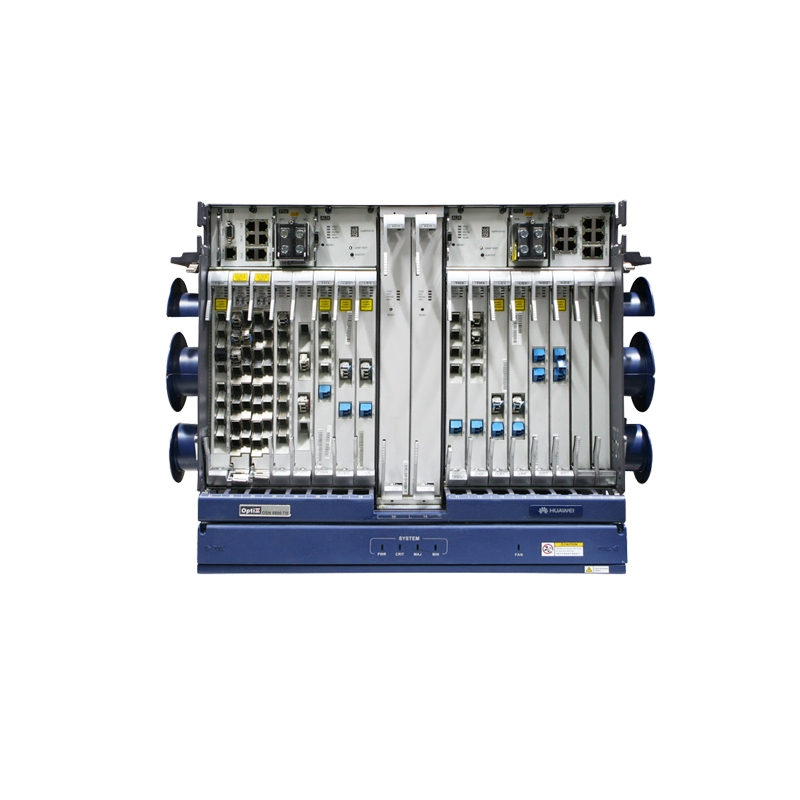

  • For long, multi-branch tunnels with many camera rings and strict uptime requirements, higher-capacity and more scalable platforms such as Huawei-OptiX-OSN-550, OSN-580, OSN-6800, OSN-7500, OSN-8800-T16, or OSN-9800-M24 are usually preferred, as they offer richer protection schemes and larger service boards for video VLAN transport.
  • A practical selection rule is to align the OSN platform with the aggregation switch capabilities at the control room: if you plan dense 25/100G uplinks on Arista or Cisco, choose OSN models that can present matching 10/25/100G line interfaces and support the necessary Ethernet OAM features for VLAN fault isolation.
  • If you share a brief tunnel topology (length, number of cross-passages, expected camera count and NVR locations), our team can provide a bill-of-materials and platform comparison to shorten your evaluation cycle.

Can Arista and Cisco switches safely aggregate Huawei OSN video VLANs without interoperability issues?

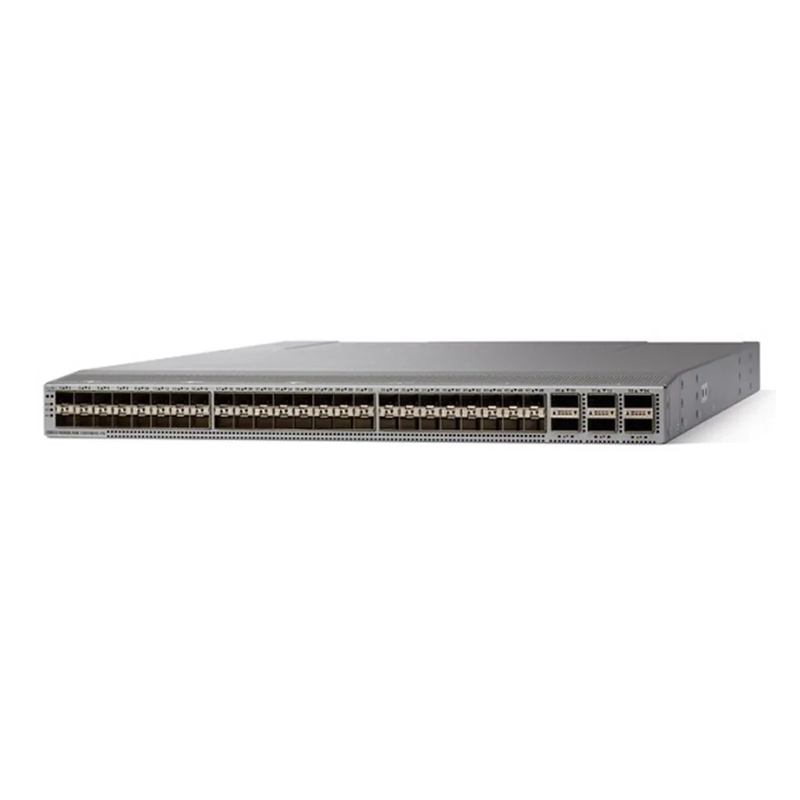

  • In most tunnel deployments, Huawei OptiX OSN systems present standard Ethernet or IP interfaces, which can be terminated on Arista DCS-7050X3 series, Arista DCS-7300X3-48TC4-LC, or Cisco N9K-C93108-FX3-B8C / ACI-C9332-VAPIC-B1 using common 1/10/25/100G optics, so basic L2/L3 interoperability is typically not a problem.
  • The main integration focus is not basic forwarding but operational features: make sure that VLAN tagging models (QinQ vs single tag), MTU, link aggregation (LACP), and monitoring (Ethernet OAM, ERPS or STP interactions) are planned consistently between Huawei OSN and your Arista/Cisco aggregation switches.
  • For video surveillance VLAN stability, many operators dedicate separate uplinks or VRFs to SCADA, VoIP, and CCTV, and use per-service QoS and CoS mapping at the Arista/Cisco edge to avoid CCTV bursts impacting other tunnel services.
  • If you want a configuration-level compatibility review before purchasing optics and line cards, you can describe your existing OSN release and switch OS version and request design help via our free CCIE support channel. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

What should I check to ensure VLAN fault isolation beyond the NVR, especially for long-distance fiber in tunnels?

  • From a design perspective, place the primary fault domains at the aggregation and transport layers, not at the NVR: use Arista fiber aggregation (for example DCS-7050SX3 or DCS-7300X3-48TC4-LC) or Cisco data center switches to terminate field uplinks and enforce per-VLAN isolation and access control before traffic reaches the NVR network.
  • On the optical side, consider segregating critical CCTV VLANs onto specific OSN Ethernet service boards or dedicated wavelengths where possible, so that a single fiber or port failure does not take out both CCTV and other tunnel services; platform options like OSN-6800/7500/8800/9800-M24 are particularly relevant here for large backbones.
  • Operationally, plan for field-test access: OTDR and optical power budgets, plus Ethernet OAM loopbacks and clear naming conventions on the OSN and aggregation switches, are key to finding whether a CCTV outage originates in tunnel fiber, OSN service mapping, or the switching layer.
  • It is also advisable to define standard commissioning tests for each new camera spur and emergency cross-passage, so that you can validate VLAN tagging, QoS, and redundancy behaviors while the tunnel is still under construction, rather than after opening to traffic.

How should I plan capacity and performance to avoid CCTV video loss during peak tunnel events?

  • For cameras with 1080p or higher resolution and multi-streaming (recording plus live view), many operators design with at least 30–40% headroom on the uplink between Huawei OSN and the Arista/Cisco aggregation layer, so that bursts during incidents or maintenance do not cause sustained congestion.
  • Choose aggregation switches with adequate buffer and QoS capabilities (for example Arista 7050X3/7300X3 or Cisco N9K-C93108-FX3-B8C) and configure strict or priority queuing for critical CCTV VLANs; this helps ensure stable video feed even when other tunnel systems generate unexpected traffic spikes.
  • In longer tunnels with regeneration sites, factor in the cumulative latency and protection switching time of the OSN backbone: verify that your video management system, NVRs, and client software can tolerate the failover time of the optical layer and still maintain session stability.
  • During procurement, share your expected camera count, codec, bit-rate range, and retention policy so that both OSN transport and aggregation switch ports are sized with realistic allowances instead of only using theoretical camera specs.

What should I know about lifecycle, EOL, and spares planning for tunnel surveillance transport and switching?

  • Tunnels typically operate for decades, so it is important to verify lifecycle status of the chosen Huawei OptiX OSN models and Arista/Cisco switches, and to keep a minimal spare set of key service boards, power supplies, and critical optics at the control room or maintenance depot.
  • Before finalizing your hardware list, we recommend checking whether any candidate SKUs are close to vendor end-of-sale or end-of-support; you can use our EOL / EOSL checker as an early filter during design and again before any expansion phase.
  • For long-term projects, many operators standardize on one or two OSN chassis types (for example OSN-1800-V at the edge and OSN-6800/7500 in the backbone) and one aggregation switch family, which simplifies spare management and reduces the risk of mixed feature sets in critical CCTV paths.
  • If your tunnel is being built in phases, consider procuring a small buffer of compatible optics and reserved line-card slots in the initial deployment, to avoid redesign when later adding camera segments or safety systems.

How are these devices shipped, taxed, and supported if the tunnel project is cross-border or multi-contractor?

  • For cross-border tunnel deployments, shipping methods and lead times will depend on the specific Huawei OSN and Arista/Cisco SKUs selected, as well as stock availability and your destination country; a detailed estimate can be provided once the bill of materials and site details are clarified. For an overview of logistics options and constraints, you can review our shipping methods information.
  • Import taxes, customs duties, and clearance requirements vary widely by country and by the declared project type; we recommend that the project owner or EPC partner coordinate import responsibilities early in the design phase. General guidance on duties and documentation is available on our taxes and customs duties page.
  • For warranty handling and any DOA or early-life failures in critical tunnel roles, please review our current warranty policy as well as the process for replacing faulty goods described in our return instructions, and align your on-site spares plan accordingly. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
