JZ336A

Aruba AP-535 (RW) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP

List Price: US$2,159.00
Price: US$384.00
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

JZ336A Overview

JZ336A is the Aruba AP-535 (RW) - Campus - wireless access point. Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With a maximum real-world aggregate data rate of 2.97 Gbps (HE80/HE20), the 530 Series deliver the speed and reliability needed for any enterprise.

Quick Spec

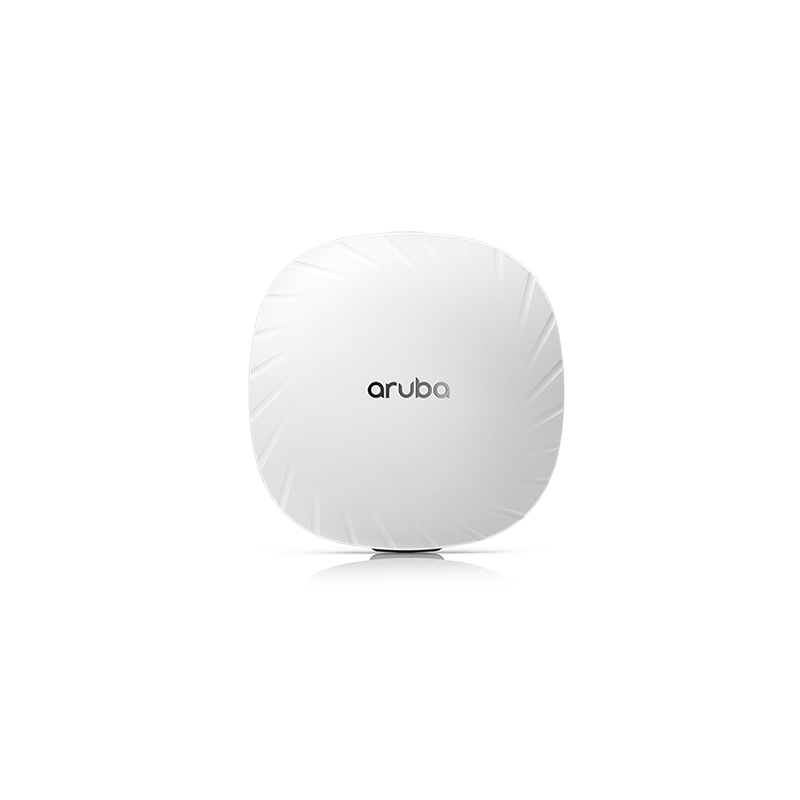

Figure 1 shows the appearance of JZ336A.

JZ336A
Table 1 shows the quick spec.

Model

JZ336A

Series

Aruba AP-535

AP type

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax

4x4 MIMO

5GHz radio

Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS

HE80 (or 2SS HE160) 802.11ax client devices, or with four

1SS or two 2SS HE80 802.11ax MU-MIMO capable client

devices simultaneously

2.4GHz radio

Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with

individual 4SS HE40 (HE20) 802.11ax client devices or with

two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client

devices simultaneously

Antenna

4 integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna

gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz.

Supported data rates (Mbps)

- 802.11b: 1, 2, 5.5, 11

- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

- 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM

- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM

- 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)

- 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

Product Details

Figure 2 shows the front panel of JZ336A.

 JZ336A front

Figure 3 shows the back panel of JZ336A.

JZ336A back
Aruba AP-530 provides these key features:

• 2.97 Gbps maximum real-world speed (HE80/HE20)

• WPA3 and Enhanced Open security

• Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices

• OFDMA and MU-MIMO for enhanced multi-user efficiency

• IoT-ready Bluetooth 5 and Zigbee support

The Accessories

Table 2 shows the accessories of JZ336A.

Mount Kit

R3J18A

AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface

R3J19A

AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box

Power Adaptor

R3K01A

AP-AC2-48C 48V/50W AC/DC desktop style power adapter with 1.35/3.5mm connector

Compare to Similar Items

Table 3 shows the comparison.

Model

R2H28A

JZ336A

Series

Aruba AP-505

Aruba AP-535

AP type

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax

2x2 MIMO

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax

4x4 MIMO

5GHz radio

Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices

Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously

2.4GHz radio

Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices

Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with individual 4SS HE40 (HE20) 802.11ax client devices or with two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously

Antenna

2 Internal Omni-directional 5.7 DBi Antenna

4 integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz.

Supported data rates (Mbps)

• 802.11b: 1, 2, 5.5, 11

• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

• 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM

• 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM

• 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

• 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

- 802.11b: 1, 2, 5.5, 11

- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

- 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM

- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM

- 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)

- 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

Get More Information

Do you have any question about the JZ336A?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications
Specification

JZ336A Specification

JZ336A Specification

Series

Aruba AP-535

AP type

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax

4x4 MIMO

5GHz radio

Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS

HE80 (or 2SS HE160) 802.11ax client devices, or with four

1SS or two 2SS HE80 802.11ax MU-MIMO capable client

devices simultaneously

2.4GHz radio

Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with

individual 4SS HE40 (HE20) 802.11ax client devices or with

two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client

devices simultaneously

Antenna

4 integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna

gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz.

Supported data rates (Mbps)

- 802.11b: 1, 2, 5.5, 11

- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

- 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM

- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM

- 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)

- 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

Dimensions

AP-535; unit, excluding mount bracket:  240mm (W) x 240mm (D) x 57mm (H) / 9.4” (W) x 9.4” (D) x 2.2” (H)

Certifications

• UL2043 plenum rating

• Wi-Fi Alliance:

- Wi-Fi CERTIFIED a, b, g, n, ac

- Wi-Fi CERTIFIED 6 (ax)

- WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open ( OWE)

- WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband

- Passpoint (release 2)

• Bluetooth SIG

Q&A

Questions & Answers

Is there an option to upgrade the Aruba AP-535 (RW) access point in the future?

Yes, the Aruba AP-535 (RW) access point is capable of receiving software updates to ensure continued performance improvements and security enhancements. These updates can be easily applied through the ArubaOS management platform.

Are there any alternative access points comparable to the Aruba AP-535 (RW) access point?

Yes, Aruba offers a range of access points suitable for different deployment scenarios. Alternative options include the Aruba AP-505 (RW), AP-515 (RW), and AP-555 (RW) access points, which offer varying performance and feature sets to meet specific customer requirements.

Are there any common troubleshooting tips for the Aruba AP-535 (RW) access point?

In case of connectivity issues or performance degradation, it is recommended to check the placement of the access point, ensure proper power supply, and verify the configuration settings. If the issue persists, contacting Aruba technical support for assistance is recommended.

How does the Aruba AP-535 (RW) access point compare to other similar access points in terms of cost-effectiveness?

The Aruba AP-535 (RW) access point delivers a balance of performance and affordability. It provides advanced 802.11ax capabilities at a competitive price point, making it a cost-effective choice for organizations looking to upgrade their wireless infrastructure.
