Name:	CE12816D-B02
Model:	CE12816D-B02 Huawei CE12800 Series Data Center Switch
Detail:	CE12816 DC Bundle2 (DC Assembly Chassis,2MPUA,5SFU16B,8*PDC-2200WA)
	30 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$77,846.40 Why Can We Provide this Competitive Price? With digital management and bulk purchases from original manufacturers and authorized suppliers globally, Router-switch.com guarantees quality and authenticity at a competitive price.
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

US$ 77,846.40 New Factory Sealed 3 Years

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, EMS, etc.

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Genuine Guarantee
Price Protection

Bulk Order Rebate
100% Moneyback

Expert Team Support

CCIE, HCIE, HPE ASE, etc.

Live Chat | Email

7*24h Online

+1-626-655-0998 (UTC 15:00 -- 00:00)

+852-25925389 (UTC 00:00 -- 9:00)

+852-25925411 (UTC 6:00 -- 15:00)

+1-626-655-0998

+852-25925389

+852-25925411

Project Inquiry

Join Us

Local Channel Manager
IT Sales Representative
Sales Manager

In United States

CE12816D-B02

CE12816 DC Bundle2 (DC Assembly Chassis,2*MPUA,5*SFU16B,8*PDC-2200WA)

Price: US$77,846.40

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

CE12816D-B02 Overview

CE12816D-B02 is CE12816 DC Bundle2 (DC Assembly Chassis, 2*MPUA, 5*SFU16B, 8*PDC-2200WA).

Quick Specs

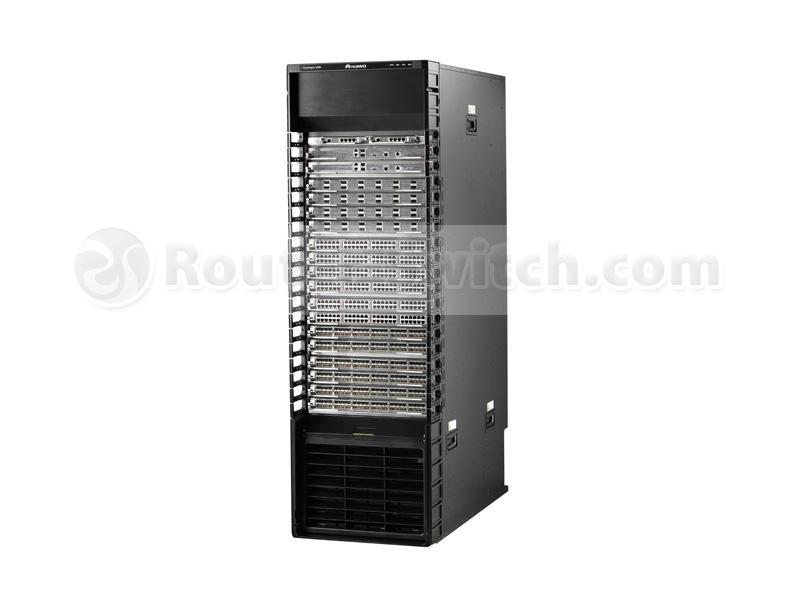

Figure 1 shows the appearance of CE12816D-B02.

Table 1 shows the Quick Specs.

Product Code	CE12816D-B02
Switching Capacity (Tbit/s)	178/ 1,032
Forwarding Rate (Mpps)	69,120
Service Slots	16
Switching Fabric Module Slots	6
LPU slots	16 (slot IDs: 01 to 16)
MPU slots	2 (slot IDs: 17 to 18)
CMU slots	2 (slot IDs: 19 to 20)
SFU slots	6 (slot IDs: 21 to 26)
Power slots	20 (slot IDs: PM1 to PM20)
Fan slots	23 (slot IDs: FAN1 to FAN23)
UOM	PCS
Pack Weight(kg)	355.2
Pack Volume(m^3)	2.388
*Pack Dimension(DWH mm)*	100012001990
*Net Dimension(DWH mm)*	11507501850
Typic Power(W)	699

Product Details

Figure 2 shows the front panel of CE12816D-B02.

Note:

①	CE12800 series switches chassis header, showing the following: Product series name: ·For the CE12816 chassis, the series name is CloudEngine 12800. ·Huawei Logo ·PWR, FAN, SFU, and MPU indicators
②	Two CMUs
③	Cable management frame
④	Front ESD jack
⑤	Power modules
⑥	Indicators
⑦	Two MPUs
⑧	LPU
⑨	Air intake area for SFUs in the CE12816 chassis
⑩	Two power switches

* CE12816D-B02 is CE12816 DC Bundle2 (DC Assembly Chassis, 2*MPUA, 5*SFU16B, 8*PDC-2200WA), the other modules or cards must be purchased separately.

Figure 3 shows the back panel of CE12816D-B02.

Note:

①	Serial number label
②	Rear ESD jack
③	Handle
④	Power distribution unit
⑤	MAC address label
⑥	Fan modules
⑦	SFU
⑧	Two ground points for a dual-hole ground lug, with a yellow grounding label attached

* CE12816D-B02 is CE12816 DC Bundle2 (DC Assembly Chassis, 2*MPUA, 5*SFU16B, 8*PDC-2200WA), the other modules or cards must be purchased separately.

The Modules, Cards

Table 2 shows the recommended elements for the CE12816D-B02.

Model	Description
AC&high-voltage DC power module
PHD-3000WA	3000W HVDC Power Module
DC power module
PDC-2200WA	2200W DC Power Supply
AC power module
PAC-2700WA	2700W AC Power Supply
FE-SFP optical transceiver
eSFP-FE-LX-SM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP optical transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ optical transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
40GE CFP optical transceiver
CFP-40G-LR4	High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC)
CFP-40G-ER4	High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC)
40GE QSFP+ optical transceiver
QSFP-40G-eSR4	40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-ER4	40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC)
100GE CFP optical transceiver
CFP-100G-SR10	High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO)
CFP-100G-LR4	CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC)
CFP-100G-ER4	High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC)
GE copper transceiver
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
100GE interface card
CE-L12CF-EG	12-Port-100GE Interface Card(EG,CFP2)
CE-L08CC-EC	8-Port-100G Interface Card(EC,CXP)
10GE interface card
CE-L48XT-EC	Huawei 48-port 100M/1000M/10G Base-T Interface Card(EC,RJ45) CE-L48XT-EC
CE-L48XS-EC	48-Port-10GE Interface Card(EC,SFP+)
40GE interface card
CE-L24LQ-EC1	24-Port-40G Interface Card(EC1,QSFP+)
CE-L12LQ-EF	12-Port-40G Interface Card(EF,QSFP+)
Firewall module
CE-FWA	Huawei CE12800 NGFW Module A CE-FWA, with HW General Security Platform Software
GE interface card
CE-L48GT-ED	48-Port 10/100/1000BASE-T Interface Card(ED,RJ45)
CE-L48GS-ED	48-Port 100/1000BASE-X Interface Card(ED,SFP)
Fan module
FAN-16A	CE12800 Fan Box

Compare to Similar Items

Table 3 shows the comparison of CE12816D-B02 and CE12812A-B00.

Product Code	CE12816D-B02	CE12812A-B00
Switching Capacity (Tbit/s)	178/ 1,032	134/ 774
Forwarding Rate (Mpps)	69,120	51,840
Service Slots	16	12
Switching Fabric Module Slots	6	6
LPU slots	16 (slot IDs: 01 to 16)	12 (slot IDs: 01 to 12)
MPU slots	2 (slot IDs: 17 to 18)	2 (slot IDs: 13 to 14)
CMU slots	2 (slot IDs: 19 to 20)	2 (slot IDs: 15 to 16)
SFU slots	6 (slot IDs: 21 to 26)	6 (slot IDs: 17 to 22)
Power slots	20 (slot IDs: PM1 to PM20)	12 (slot IDs: PM1 to PM12)
Fan slots	23 (slot IDs: FAN1 to FAN23)	17 (slot IDs: FAN1 to FAN17)

Get more information

Do you have any question about the CE12816D-B02?

Quality Certifications

Specification

CE12816D-B02 Specification

CE12816A-B02 Specifications
Switching Capacity (Tbit/s)	178/ 1,032
Forwarding Rate (Mpps)	69,120
Service Slots	16
Switching Fabric Module Slots	6
Fabric Architecture	Clos architecture, cell switching, VoQ, and distributed large buffer
Airflow Design	Strict front-to-back
Device Virtualization	Virtual System (VS)
	Cluster Switch System (CSS)2
	Super Virtual Fabric (SVF)3
Network Virtualization	M-LAG
	TRILL
	VxLAN routing and bridging
	EVPN
	QinQ in VXLAN
VM Awareness	Agile Controller
Network Convergence	FCoE
Network Convergence	DCBX, PFC, and ETS
Data Center Interconnect	BGP-EVPN
Data Center Interconnect	Ethernet Virtual Network (EVN) for inter-DC Layer 2 network interconnections
Programmability	OpenFlow
	ENP programming
	OPS programming
	Puppet, Ansible, and OVSDB plug-ins released on open source websites
	Linux container for open source and customization programming
Traffic Analysis	NetStream
Traffic Analysis	Hardware-based sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs
	Default VLAN
	QinQ
	MUX VLAN
	GVRP
MAC Address	Dynamic learning and aging of MAC addresses
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
	MAC address limiting based on ports and VLANs
IP Routing	IPv4 routing protocols, such as RIP, OSPF, IS-IS, and BGP
	IPv6 routing protocols, such as RIPng, OSPFv3, ISISv6, and BGP4+
	IP packet fragmentation and reassembling
IPv6	IPv6 over VXLAN
	IPv6 over IPv4
	IPv6 Neighbor Discovery (ND)
	Path MTU Discovery (PMTU)
	TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6
Multicast	IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
	IGMP snooping
	IGMP proxy
	Fast leave of multicast member interfaces
	Multicast traffic suppression
	Multicast VLAN
MPLS	Basic MPLS functions
MPLS	MPLS VPN/VPLS/VPLS over GRE
Reliability	Link Aggregation Control Protocol (LACP)
	STP, RSTP, VBST, and MSTP
	BPDU protection, root protection, and loop protection
	Smart Link and multi-instance
	Device Link Detection Protocol (DLDP)
	Ethernet Ring Protection Switching (ERPS, G.8032)
	Hardware-based Bi-directional Forwarding Detection (BFD)
	VRRP, VRRP load balancing, and BFD for VRRP
	BFD for BGP/IS-IS/OSPF/Static route
	In-Service Software Upgrade (ISSU)
	Segment Routing (SR)
QoS	Traffic classification based on Layer 2, Layer 3, Layer 4, and priority information
	Actions include ACL, CAR, and re-marking
	Queue scheduling modes such as PQ, WFQ, and PQ + WRR
	Congestion avoidance mechanisms, including WRED and tail drop
	Traffic shaping
O&M	IEEE 1588v2
	Packet Conservation Algorithm for Internet (iPCA)
	Dynamic Load Balancing (DLB)
	Dynamic Packet Prioritization (DPP)
	Network-wide path detection
	Microsecond-level buffer detection
Configuration and Maintenance	Console, Telnet, and SSH terminals
	Network management protocols, such as SNMPv1/v2c/v3
	File upload and download through FTP and TFTP
	BootROM upgrade and remote upgrade
	Hot patches
	User operation logs
	Zero-Touch Provisioning (ZTP)
Security and Management	802.1x authentication
	RADIUS and HWTACACS authentication for login users
	Command line authority control based on user levels, preventing unauthorized users from using commands
	Defense against MAC address attacks, broadcast storms, and heavy-traffic attacks
	Ping and traceroute
	Remote Network Monitoring (RMON)
Dimensions (W x D x H, mm)	442 x 905 x 1,597.4 (36 U)
Chassis Weight (empty)	< 290 kg (639 lb)
Operating Voltage	AC: 90V to 290V DC: -38.4V to -72V HVDC: 240V
Max. Power Supply	30,000W

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are common troubleshooting steps for the CE12816D-B02?

Common troubleshooting involves checking power connections, software configurations, and consulting Huawei technical support for persistent issues.

What accessories are available for the CE12816D-B02?

Accessories include additional power modules, fan modules, and expansion cards to enhance performance and reliability.

How does the CE12816D-B02 compare with similar products?

The CE12816D-B02 offers superior scalability and performance compared to other products in its class, making it a top choice for demanding data center applications.

Can the CE12816D-B02 be integrated with existing networks?

Yes, with its advanced connectivity options and support for multiple protocols, the CE12816D-B02 easily integrates into existing network infrastructures.

Learn More

How cost-effective is the CE12816D-B02 for large-scale data centers?

The CE12816D-B02 offers exceptional scalability and robust performance, making it a cost-effective solution for large-scale data centers seeking long-term investment value.

What are the key features of the CE12816D-B02?

The CE12816D-B02 features a DC Assembly Chassis, 2 MPUA, 5 SFU16B, and 8 PDC-2200WA, providing high reliability and scalability.

What are the primary application scenarios for the CE12816D-B02?

The CE12816D-B02 is ideal for enterprise data centers, cloud computing environments, and high-performance computing clusters.

How do I install the CE12816D-B02 in my data center?

The CE12816D-B02 can be installed by following the detailed instructions in the Huawei installation guide, ensuring correct placement, connections, and power supply setup.

Does the CE12816D-B02 require frequent upgrades?

The CE12816D-B02 is designed with future-proof features but periodic firmware updates from Huawei are recommended to enhance performance and security.

Are there alternative products to the CE12816D-B02?

Alternatives include other Huawei high-end products like the CE12808 and CE12812, depending on specific capacity and performance requirements.

What are common troubleshooting steps for the CE12816D-B02?

Common troubleshooting involves checking power connections, software configurations, and consulting Huawei technical support for persistent issues.

What accessories are available for the CE12816D-B02?

Accessories include additional power modules, fan modules, and expansion cards to enhance performance and reliability.

How does the CE12816D-B02 compare with similar products?

The CE12816D-B02 offers superior scalability and performance compared to other products in its class, making it a top choice for demanding data center applications.

Can the CE12816D-B02 be integrated with existing networks?

Yes, with its advanced connectivity options and support for multiple protocols, the CE12816D-B02 easily integrates into existing network infrastructures.

How cost-effective is the CE12816D-B02 for large-scale data centers?

The CE12816D-B02 offers exceptional scalability and robust performance, making it a cost-effective solution for large-scale data centers seeking long-term investment value.

What are the key features of the CE12816D-B02?

The CE12816D-B02 features a DC Assembly Chassis, 2 MPUA, 5 SFU16B, and 8 PDC-2200WA, providing high reliability and scalability.

What are the primary application scenarios for the CE12816D-B02?

The CE12816D-B02 is ideal for enterprise data centers, cloud computing environments, and high-performance computing clusters.

How do I install the CE12816D-B02 in my data center?

The CE12816D-B02 can be installed by following the detailed instructions in the Huawei installation guide, ensuring correct placement, connections, and power supply setup.

Does the CE12816D-B02 require frequent upgrades?

The CE12816D-B02 is designed with future-proof features but periodic firmware updates from Huawei are recommended to enhance performance and security.

Are there alternative products to the CE12816D-B02?

Alternatives include other Huawei high-end products like the CE12808 and CE12812, depending on specific capacity and performance requirements.

What are common troubleshooting steps for the CE12816D-B02?

Common troubleshooting involves checking power connections, software configurations, and consulting Huawei technical support for persistent issues.

What accessories are available for the CE12816D-B02?

Accessories include additional power modules, fan modules, and expansion cards to enhance performance and reliability.

How does the CE12816D-B02 compare with similar products?

The CE12816D-B02 offers superior scalability and performance compared to other products in its class, making it a top choice for demanding data center applications.

Can the CE12816D-B02 be integrated with existing networks?

Yes, with its advanced connectivity options and support for multiple protocols, the CE12816D-B02 easily integrates into existing network infrastructures.

How cost-effective is the CE12816D-B02 for large-scale data centers?

The CE12816D-B02 offers exceptional scalability and robust performance, making it a cost-effective solution for large-scale data centers seeking long-term investment value.

What are the key features of the CE12816D-B02?

The CE12816D-B02 features a DC Assembly Chassis, 2 MPUA, 5 SFU16B, and 8 PDC-2200WA, providing high reliability and scalability.

What are the primary application scenarios for the CE12816D-B02?

The CE12816D-B02 is ideal for enterprise data centers, cloud computing environments, and high-performance computing clusters.

How do I install the CE12816D-B02 in my data center?

The CE12816D-B02 can be installed by following the detailed instructions in the Huawei installation guide, ensuring correct placement, connections, and power supply setup.

Does the CE12816D-B02 require frequent upgrades?

The CE12816D-B02 is designed with future-proof features but periodic firmware updates from Huawei are recommended to enhance performance and security.

Are there alternative products to the CE12816D-B02?

Alternatives include other Huawei high-end products like the CE12808 and CE12812, depending on specific capacity and performance requirements.

What are common troubleshooting steps for the CE12816D-B02?

Common troubleshooting involves checking power connections, software configurations, and consulting Huawei technical support for persistent issues.

What accessories are available for the CE12816D-B02?

Accessories include additional power modules, fan modules, and expansion cards to enhance performance and reliability.

How does the CE12816D-B02 compare with similar products?

The CE12816D-B02 offers superior scalability and performance compared to other products in its class, making it a top choice for demanding data center applications.

Can the CE12816D-B02 be integrated with existing networks?

Yes, with its advanced connectivity options and support for multiple protocols, the CE12816D-B02 easily integrates into existing network infrastructures.

Warranty

Standard Services

Warehouse

Customer Service

Packaging

Branch Offices : Hong Kong | USA | UK

Quality Checking

Shipping

Trusted by over 18,000 customers globally

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only:

Item conditions are all "New Sealed".
All items are fully tested with working conditions by Huawei certified engineer under customers' permission.

100% Money Back Guarantee:

If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support:

Router-switch.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Warranty Policy:

Original New Sealed Enterprise Hardware: 3 Years

Original New Sealed Consumer Devices: 1 Year

The Support Contacts:

If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Download

Model Datasheet

CE12816D-B02 Datasheet

CE12816D-B02

Expert Team Support

You may also be interested in the following product(s)

CE12804-DC

CE12804-AC

CE12804-AC1

CE12804S-DC

CE12804A-B09

CE12804D-B02

CE12804D-B01

CE12804D-B00

CE12804A-B00

CE12804A-B02

CE12804SA-B1

CE12804SA-B0

CE12816D-B02

CE12816D-B02 Overview

Quick Specs

Product Details

The Modules, Cards

Compare to Similar Items

Get more information

CE12816D-B02 Specification

CE12816A-B02 Specifications

Questions & Answers

Standard Services

Warranty

Product Tags
