main product photo
Name:

AT815SN-POE

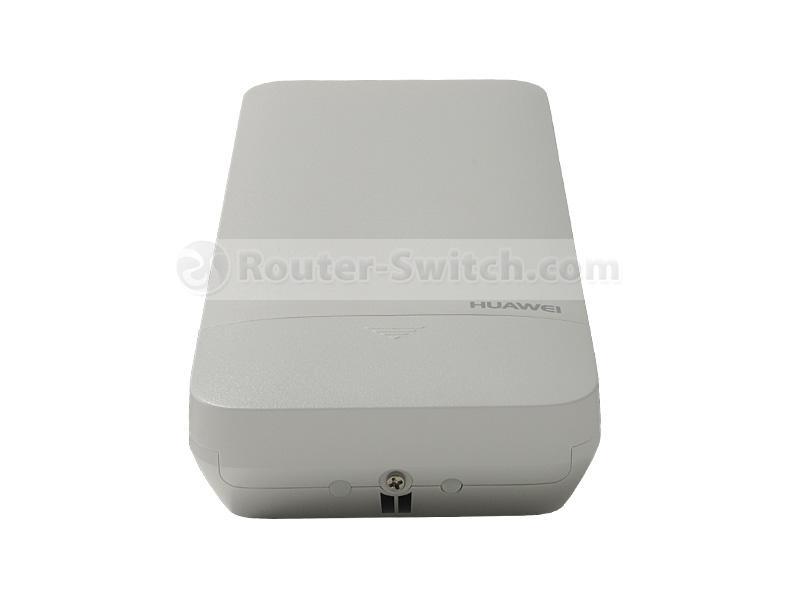

Model: AT815SN-POE Huawei Outdoor Wireless Access Terminal
Detail:
AT815SN Mainframe(11n,General NPE, Outdoor,2x2 Single Band(5GHz),Internal Antenna,PoE adapter)
5 2 Rating:
100%
5/5.0
2 Reviews
Price: US$416.50
Why Can We Provide this Competitive Price?
With digital management and bulk purchases from original manufacturers and authorized suppliers globally, Router-switch.com guarantees quality and authenticity at a competitive price.
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: Item Backordered
Condition: New Factory Sealed
US$ 416.50 New Factory Sealed 3 Years
Warranty: 3 years warranty
Quote now, save up to 8%.
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, EMS, etc.
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 100% Moneyback
Expert Team Support

Expert Team Support

CCIE, HCIE, HPE ASE, etc.
Live Chat  |  Email
7*24h Online
+1-626-655-0998 (UTC 15:00 -- 00:00)
+852-25925389 (UTC 00:00 -- 9:00)
+852-25925411 (UTC 6:00 -- 15:00)
  +1-626-655-0998
  +852-25925389
  +852-25925411
Project Inquiry
Join Us
Local Channel Manager
IT Sales Representative
Sales Manager
In  United States
Part-time IT Sales

You may also be interested in the following product(s)

AP6510DN-AGN

AP6510DN-AGN

Rating:
100%
5/5.0
1 Review

AT815SN-POE

AT815SN Mainframe(11n,General NPE, Outdoor,2x2 Single Band(5GHz),Internal Antenna,PoE adapter)

Price: US$416.50
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

AT815SN-POE Overview

Huawei AT815SN-POE outdoor AT connects indoor wired/wireless stations to outdoor APs and acts as a wireless bridge.

Quick Specs

Table 1 shows the Quick Specs.

Product Number

AT815SN-POE

POE Adapter

Supported

Power Input

PoE: −48V DC (in compliance with IEEE 802.3af)

Maximum Power Consumption

9.5W

Operating Temperature

−20°C to 55°C

Antenna Type/Antenna Gain

Built-in antenna/13 dBi

Maximum Number of Users

NA

Maximum Transmit Power

26 dBm (combined power)

MIMO: Spatial Streams

2 x 2:2

Radio Protocols

802.11a/n

Maximum Speed

300 Mbit/s

Dimensions (H x W x D)

295 mm x 132 mm x 49 mm

Weight

0.8kg

Product Details

Figure 1 shows the Typical AT Network.

Typical AT Network

AT815SN-POE is a standard outdoor access terminal (AT) that provides excellent remote access performance and enhanced protection. It supports 2x2 MIMO and the 5 GHz frequency band, complies with IEEE 802.11a/n, and can work as a wireless bridge. It provides comprehensive service support capabilities and features high reliability, high security, simple network deployment, and real-time remote management and maintenance, which meets outdoor long-distance access requirements.

The Accessories

Table 2 shows the recommended accessories.

Model

Description

W0ACPSE11

Adapter, -25degC, 60degC, 90V, 264V, 56V/1.52A, C8/RI45, POE ADAPTER

W0ACPSE14

POE35-54A

E000CMC00

Network Interface Connector, 8PIN, 8bit, Shielded, Crystal Model Connector, 23-24AWG Single Solid Wire, CAT6

Compare to Similar Items

Table 3 shows the comparison of AT815SN-POE and AP8130DN.

Product Number

AT815SN-POE

AP8130DN

Product Type

Access Terminal

Access Point

Power Input

PoE: −48V DC (in compliance with IEEE 802.3af)

PoE: In compliance with IEEE 802.3at

Maximum Power Consumption

9.5W

22.4W

Operating Temperature

−20°C to 55°C

−40°C to 65°C

Antenna Type

Built-in antenna/13 dBi

Outdoor external antennas

Maximum Number of Users

NA

≤ 256

Maximum Transmit Power

26 dBm (combined power)

2.4G: 28 dBm (combined power)
5G: 26 dBm (combined power)

MIMO: Spatial Streams

2 x 2:2

3 x 3:3

Radio Protocols

802.11a/n

802.11a/b/g/n/ac

Maximum Speed

300 Mbit/s

1.75 Gbit/s

Get more information

Do you have any question about the AT815SN-POE?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications
Specification

AT815SN-POE Specification

AT815SN-POE Specifications

Dimensions (H x W x D)

49 mm x 295 mm x 132 mm

Weight

0.8 kg

System memory

128 MB DDR2

32 MB flash memory

Power input

PoE power supply: in compliance with IEEE 802.3af/at

Maximum power consumption

9.5 W

NOTE:

The actual maximum power consumption depends on local laws and regulations.

Operating temperature and altitude

-60 m to +1800 m: -20°C to +55°C

1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 300 m.

Storage temperature

-40°C to +70°C

Operating humidity

5% to 95% (non-condensing)

IP Rating

IP55

Atmospheric pressure

70 kPa to 106 kPa

Antenna type

Built-in antenna

Horizontal beamwidth: 60 degrees

Vertical beamwidth: 15 degrees

Antenna gain

13 dBi

Maximum transmit power

5G: 26 dBm (combined power)

NOTE:

The actual transmit power depends on local laws and regulations.

You can adjust the transmit power from the maximum transmit power to 1 dBm, with a step of 1 dB.

Maximum number of non-overlapping channels

5 GHz

802.11a

20 MHz: 5

802.11n

20 MHz: 5



NOTE:

The table uses the number of non-overlapping channels supported by China as an example. The number of non-overlapping channels varies in different countries. For details, see the Country Codes & Channels Compliance.



NOTICE:

If the AP is delivered to the USA, pay attention to the following on channel and frequency band usage.

The country code of the AP is fixed.

High power radars working at frequencies in the range of 5.25 GHz to 5.35 GHz, 5.47 GHz to 5.6 GHz, and 5.65 GHz to 5.725 GHz can interfere with or even damage APs working at the same frequency.

Channel rate

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n: 300 Mbit/s
Q&A

Questions & Answers

What are some common troubleshooting steps for AT815SN-POE?

Common troubleshooting includes checking the PoE connection, ensuring the device is within operational range, and verifying firmware is up to date.

What accessories are available for the AT815SN-POE?

Available accessories for the AT815SN-POE include additional PoE adapters, mounting kits, and weatherproof enclosures.

How does the AT815SN-POE compare to similar products?

Compared to similar products, the AT815SN-POE provides a balanced mix of performance, durability, and cost-effectiveness for outdoor use.

Is the AT815SN-POE easy to use?

Yes, the AT815SN-POE is designed for ease of use, with intuitive installation and operation procedures that do not require advanced technical knowledge.
