Overview

AR0M12VWBA00 Overview

Huawei AR0M12VWBA00 is the small office or small and medium enterprises branch one router, providing both wired and wireless Internet access, access, PBX, integration of communication and security functions, widely deployed in small campus network export, small and medium enterprises headquarters or branch of the scene.

Quick Specs

Figure 1 shows the appearance of Huawei Router - AR0M12VWBA00.

Table 1 shows the Quick Specs.

Product Code	AR0M12VWBA00
DSP	build-in 32-channel DSP
LAN Ports	8
WAN Ports	2
WAN speed with services	200 Mbps
Function	Firewall, QoS, VPN, 802.11n, SIP
WiFi	802.11 b/g/n
Voice	RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call
VPN	IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN
QoS	CAR, IP precedence/DSCP WRED, PQ/CBWFQ, etc
Weight	2.9 kg (6.39 lb)
Dimensions (W x D x H)	390.0 mm x 232.5 mm x 44.5 mm

Product Details

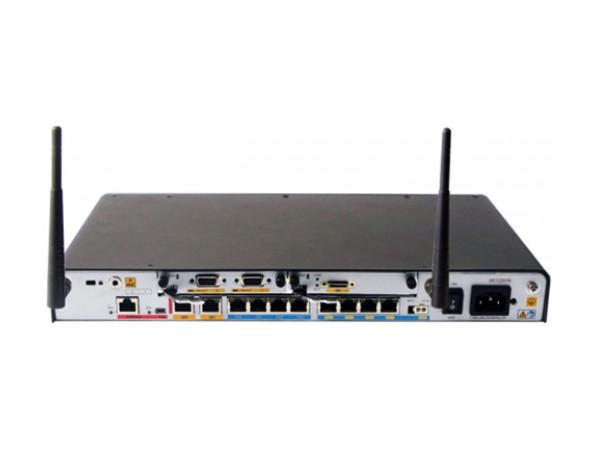

Figure 2 shows the back panel of Huawei Router - AR0M12VWBA00.

AR0M12VWBA00-back

Note:

①	EN（CON/AUX port）
②	Mini USB
③	WAN port
④	LAN port
⑤	PoE
⑥	AC Power Jack
⑦	SIC slot (The installed cards must be ordered separately.)

The Modules, Cards

Table 2 shows the recommended elements for the Huawei Router - AR0M12VWBA00.

Model	Description
Power Module
AR0MPSAP1000	100 W AC PoE power module
Ethernet LAN interface card
AR-4ES2G-S	4-Port 1000BASE-RJ45 L2 Ethernet Interface Card
AR-9ES2-W	8 Port 100M-RJ45 and 1 Port 1000M- RJ45 L2 Ethernet Interface Card
AR01WEG4SB	4-Port 1000BASE-SFP-L2 Ethernet Interface Card
AR0MWMF9TT00	8-Port 10/100BASE(RJ45) and 1-Port 10/100/1000BASE(RJ45)-L3 Ethernet Switch Interface Card
Voice service card
AR-1VE1-S	1-Port VE1 Interface card
AR01SVB4XA	4-Port FXO Voice Interface Card
AR01WVADXA	16-Port FXS Voice Interface Card
WAN interface card
AR-1E3T3M-W	1-Port Channelized/Unchannelized E3/T3 WAN Interface Card
AR01WDFE8A	8-Port Fractional Channelized E1 WAN Interface Card
AR0MSDSA1A00	1-Port Sync/Async Serial Port Interface Card
xDSL interface card
AR01SLV1XA	1-Port VDSL2 over POTS WAN Interface Module
AR0MSLA1XA01	1-Port ADSL2+ ANNEX A/M WAN Interface Module
xPDN interface card
AR0MSOPP2A00	1-Port GPON/EPON Dual-mode Interface Card

Compare to Similar Items

Table 3 shows the comparison between AR0M12VWBA00 and AR1220EVW.

Model	AR0M12VWBA00	AR1220EVW
Fixed WAN Ports	2 x GE	2 x GE Combo
Fixed LAN Ports	8 x FE (can be configured as WAN interfaces)	8 x GE (can be configured as WAN interfaces)
Slots	SIC slots: 2 WSIC slots (default/max): 0/1
Memory	512 MB	1 GB

Get more information

Do you have any question about the AR0M12VWBA00?

Quality Certifications

Specification

AR0M12VWBA00 Specification

AR0M12VWBA00 Specification
WAN speed with services***	200 Mbit/s
Firewall Performance (large packet)	900 Mbit/s
Device Switching Capacity	8 Gbit/s
Slot Switching Bandwidth	SIC & WSIC slots 2 Gbit/s
Number of Recommended Users	100
Fixed WAN Ports	2 x GE
Fixed LAN Ports	8 x FE (can be configured as WAN interfaces)
SIC Slots	2
WSIC Slots (default/max)	0/1
DSP Slots	32 channels supported by default
Wi-Fi	802.11b/g/n
USB 2.0 Ports	2
Mini-USB Ports	1
Serial Auxiliary/Console Port	1
Memory	512 MB
Flash	256 MB
Max. Power	60W
PoE Power	External 100W
AC Power	100V to 240V
Frequency	50 Hz/60 Hz
DC Power	-
Dimensions (H x W x D)	44.5 mm x 390 mm x 220 mm
Weight	2.9 kg (without interface cards)
Ambient Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What Does Each Status of the WAN Indicator Mean?

If the WAN indicator is steady green, the system is processing services. If the indicator is off, the system is not processing any services.

Are Cards of AR Routers Hot Swappable?

All cards of AR routers are hot swappable.

How Do I Check Information About an Optical Module?

Run the display transceiver command to check information about an optical module, including the center wavelength, transmission distance, optical fiber type supported, and mode (single mode or multimode).

Why Do Network Interface Indicators on an AR Router Not Light Up?

During the startup process of a router, its network interface indicators will not light up, which is a normal situation. The startup process takes several minutes. After the router starts successfully, its network interface indicators will be steady green.

Learn More

Have AR Routers Passed the CCC Certification?

The AR1220, AR1220V, AR1220W, AR1220VW, and AR2220 have passed voluntary certification of China Quality Certification Centre (CQC).

What Is the Signaling Frequency of the FXS Interfaces on a 4FXS1FXO Interface Card?

The FXS interfaces on a 4FXS1FXO interface card support signaling frequencies of 16 Hz, 25 Hz, and 50 Hz. The default signaling frequency is 25 Hz.

Do ADSL/VDSL/G.SHDSL Interfaces on AR Routers Function as CPE or Central Office?

ADSL/VDSL/G.SHDSL interfaces of AR routers function as customer premises equipment (CPE).

What Standards Does the Wi-Fi Function of the WLAN Subcard Comply With?

The Wi-Fi function of the WLAN subcard complies with the following standards: ETS 300-328 (Europe), and FCC 15.247 (US), and No. 353 of China's Radio Management Committee.

What WLAN Standards Do the Wi-Fi Interfaces on the WLAN Subcard Support?

Wi-Fi interfaces on the WLAN subcard comply with IEEE 802.11n, 802.11g, and 802.11b, and provide a maximum transmission rate of 300 Mbit/s.

Which Models in the AR1200 Series Support the WLAN Function?

AR1200 models and software versions that support the WLAN function.

What Does Each Status of the WAN Indicator Mean?

If the WAN indicator is steady green, the system is processing services. If the indicator is off, the system is not processing any services.

Are Cards of AR Routers Hot Swappable?

All cards of AR routers are hot swappable.

How Do I Check Information About an Optical Module?

Why Do Network Interface Indicators on an AR Router Not Light Up?
