main product photo
Name:

AP5030DN
Model: Huawei AP5030DN 02358108 Cost-effective Indoor Access Point
Detail:
AP5030DN Mainframe(11ac,General AP Indoor,3x3 Double Frequency,Built-in Antenna,No AC/DC adapter)
4.7 6 Rating:
93%
4.7/5.0
6 Reviews
130/mo Sold
Price: US$268.00
Why Can We Provide this Competitive Price?
With digital management and bulk purchases from original manufacturers and authorized suppliers globally, Router-switch.com guarantees quality and authenticity at a competitive price.
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: In Stock
Condition: New Factory Sealed
US$ 268.00 In stock New Factory Sealed 3 Years
Warranty: 3 years warranty
Quote now, save up to 8%.
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, EMS, etc.
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 100% Moneyback
Expert Team Support

Expert Team Support

CCIE, HCIE, HPE ASE, etc.
Live Chat  |  Email
7*24h Online
+1-626-655-0998 (UTC 15:00 -- 00:00)
+852-25925389 (UTC 00:00 -- 9:00)
+852-25925411 (UTC 6:00 -- 15:00)
  +1-626-655-0998
  +852-25925389
  +852-25925411
Project Inquiry
Join Us
Local Channel Manager
IT Sales Representative
Sales Manager
In  United States
Part-time IT Sales

You may also be interested in the following product(s)

AP6010DN-AGN

AP6010DN-AGN

Rating:
93%
4.7/5.0
6 Reviews
US$492.00

AP5030DN

AP5030DN Mainframe(11ac,General AP Indoor,3x3 Double Frequency,Built-in Antenna,No AC/DC adapter)

Price: US$268.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

AP5030DN Overview

Huawei AP5030DN cost-effective Indoor Access Point delivers high-capacity, secure WLAN access services for dense, wide-area user environments such as offices, airports, trains, and sports stadiums. The AP5030DN is Huawei's latest-generation 802.11ac Wave 1 access points. It also delivers Fast, reliable wireless access services 3 x 3 MIMO technology to aggregate wireless data rates up to 1.75 Gbit/s, WMM and priority mapping on the air interface and wired interface; legacy 802.11a/b/g/n client support ensures seamless user connections. Integrated antennas provide omnidirectional coverage without coverage holes and PoE power supply in compliance with IEEE 802.3af/at simplifies AP installation and supports Plug-and-Play (PnP) in Fit AP mode.

Quick Specs

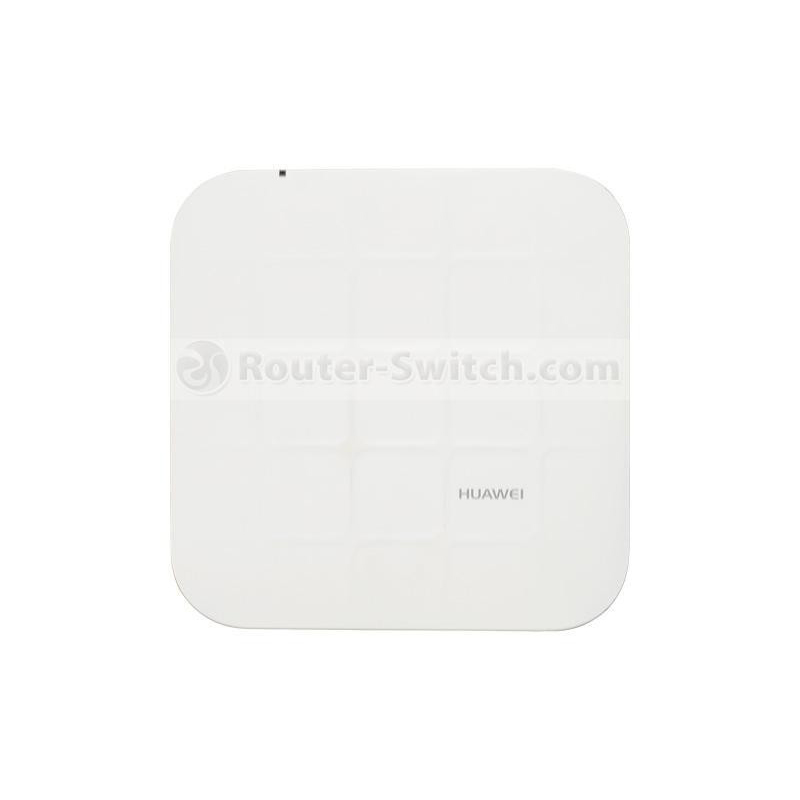

Figure 1 shows the appearance of the AP5030DN.

AP5030DN

Table 1 shows the quick specs.

Product Number

AP5030DN

Antenna Type/Antenna Gain

Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi

Maximum Number of Users

≤ 256

Maximum Transmit Power

25 dBm (combined power)

MIMO: Spatial Streams

3 x 3:3

Radio Protocol

802.11a/b/g/n/ac

Maximum Speed

1.75 Gbit/s

Power Input

12V DC ±10%

PoE: –48V DC (in compliance with IEEE 802.3af/at)

Maximum Power Consumption

12.95W

Operating Temperature

–10℃ to 50℃

Dimensions (H x W x D)

220 mm x 220 mm x 53 mm

Net Weight

2.2 lb. (1 kg)

Product Details

Figure 2 shows the ports of AP5030DN.

AP5030DN Ports

Note:

①

Default button: Restores factory settings if you hold down the button more than three seconds

②

Console interface

③

GE1: 10M/100M/1,000M interface, connects to the wired Ethernet

④

GE0/PoE: 10M/100M/1,000M interface, connects to the wired Ethernet and supports PoE power supply

⑤

Power input interface: 12V DC

⑥

Security slot: Connects to a security lock and protects the AP against theft

Compare to Similar Items

Table 2 shows the comparison of AP5030DN and AP5130DN.

Model

AP5030DN

AP5130DN

Antenna Type/Antenna Gain

Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi

Removable RP-SMA antenna/2.4 GHz: 3.5 dBi, 5 GHz: 4 dBi

Maximum Number of Users

≤ 256

≤ 256

Maximum Transmit Power

25 dBm (combined power)

25 dBm (combined power)

MIMO: Spatial Streams

3 x 3:3

3 x 3:3

Radio Protocol

802.11a/b/g/n/ac

802.11a/b/g/n/ac

Maximum Speed

1.75 Gbit/s

1.75 Gbit/s

Get more information

Do you have any question of Huawei AP5030DN access point?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications
Specification

AP5030DN Specification

AP5030DN Specifications

Technical

Dimensions (H × W × D)

8.7 in. x 8.7 in. x 2.1 in. (220 mm x 220 mm x 53 mm)

Weight

2.2 lb. (1 kg)

System memory

256 MB DDR2

32 MB flash memory

Power

Power input

DC 12V ± 10%

PoE Power: -48V DC

PoE function in compliance with IEEE 802.3af and 802.3at

Maximum power consumption

12.95W

Note: Actual maximum power consumption depends on local laws and regulations.

Environment

Operating temperature

14oF to 122oF (-10oC to 50oC)

Storage temperature

-40oF to 158oF (-40oC to 70oC)

Humidity

5% to 95% (Non-condensing)

Waterproof grade

IP41

Altitude

-196.9 ft. to 13,123.4 ft. (-60m to 5,000m)

Radio specifications

Antenna Type

Built-in

Antenna Gain

2.4G: 4 dBi
5G: 5 dBi

Maximum Number of Concurrent Users

≤ 256

Maximum Transmit Power

20 dBm

Note: You can adjust the transmit power from the maximum to 20 dB in 1 dB increments. Actual transmit power depends on local laws and regulations

Maximum Number of Non-overlapping Channels

2.4 GHz

802.11b/g

20 MHz: 3

802.11n

20 MHz: 3

40 MHz: 1

5 GHz

802.11a

20 MHz: 5

802.11n

20 MHz: 5

40 MHz: 2

802.11ac

20 MHz: 5

40 MHz: 2

80 MHz: 1

Channel Rates

802.11b: 1, 2, 5.5, and 11 Mbit/s

802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n data rate (2.4 GHz and 5 GHz): 6.5 Mbit/s to 600 Mbit/s

802.11ac data rate (5 GHz): 6.5 Mbit/s to 1,300 Mbit/s

Receiver Sensitivity

2.4 GHz

802.11b (CCK)

-96 dBm @ 1 Mbit/s

-91 dBm @ 2 Mbit/s

-92 dBm @ 5.5 Mbit/s

-88 dBm @ 11 Mbit/s

2.4 GHz

802.11g (non-HT20)

-91 dBm @ 6 Mbit/s

-90 dBm @ 9 Mbit/s

-89 dBm @ 12 Mbit/s

-86 dBm @ 18 Mbit/s

-83 dBm @ 24 Mbit/s

-80 dBm @ 36 Mbit/s

-76 dBm @ 48 Mbit/s

-74 dBm @ 54 Mbit/s

2.4 GHz

802.11n (HT20)

-91 dBm @ MCS0

-88 dBm @ MCS1

-86 dBm @ MCS2

-81 dBm @ MCS3

-78 dBm @ MCS4

-74 dBm @ MCS5

-72 dBm @ MCS6

-71 dBm @ MCS7

-89 dBm @ MCS8

-88 dBm @ MCS9

-86 dBm @ MCS10

-82 dBm @ MCS11

-79 dBm @ MCS12

-74 dBm @ MCS13

-73 dBm @ MCS14

-71 dBm @ MCS15

2.4 GHz

802.11n (HT40)

-88 dBm @ MCS0

-85 dBm @ MCS1

-83 dBm @ MCS2

-78 dBm @ MCS3

-75 dBm @ MCS4

-71 dBm @ MCS5

-70 dBm @ MCS6

-68 dBm @ MCS7

-88 dBm @ MCS8

-85 dBm @ MCS9

-82 dBm @ MCS10

-79 dBm @ MCS11

-76 dBm @ MCS12

-71 dBm @ MCS13

-70 dBm @ MCS14

-68 dBm @ MCS15

5 GHz

802.11a (non-HT20)

-89 dBm @ 6 Mbit/s

-88 dBm @ 9 Mbit/s

-86 dBm @ 12 Mbit/s

-83 dBm @ 18 Mbit/s

-80 dBm @ 24 Mbit/s

-77 dBm @ 36 Mbit/s

-73 dBm @ 48 Mbit/s

-71 dBm @ 54 Mbit/s

5 GHz

802.11n (HT20)

-90 dBm @ MCS0

-85 dBm @ MCS1

-84 dBm @ MCS2

-78 dBm @ MCS3

-75 dBm @ MCS4

-71 dBm @ MCS5

-70 dBm @ MCS6

-68 dBm @ MCS7

-88 dBm @ MCS8

-88 dBm @ MCS9

-85 dBm @ MCS10

-82 dBm @ MCS11

-79 dBm @ MCS12

-74 dBm @ MCS13

-73 dBm @ MCS14

-71 dBm @ MCS15

5 GHz

802.11n (HT40)

-85 dBm @ MCS0

-82 dBm @ MCS1

-79 dBm @ MCS2

-75 dBm @ MCS3

-72 dBm @ MCS4

-68 dBm @ MCS5

-66 dBm @ MCS6

-64 dBm @ MCS7

-87 dBm @ MCS8

-84 dBm @ MCS9

-81 dBm @ MCS10

-79 dBm @ MCS11

-76 dBm @ MCS12

-71 dBm @ MCS13

-70 dBm @ MCS14

-68 dBm @ MCS15

5 GHz

802.11ac (VTH20)

-89 dBm @ MCS0NSS1

-86 dBm @ MCS1NSS1

-84 dBm @ MCS2NSS1

-80 dBm @ MCS3NSS1

-77 dBm @ MCS4NSS1

-73 dBm @ MCS5NSS1

-71 dBm @ MCS6NSS1

-70 dBm @ MCS7NSS1

-65 dBm @ MCS8NSS1

5 GHz

802.11ac (VTH40)

-85 dBm @ MCS0NSS1

-83 dBm @ MCS1NSS1

-78 dBm @ MCS2NSS1

-77 dBm @ MCS3NSS1

-73 dBm @ MCS4NSS1

-69 dBm @ MCS5NSS1

-68 dBm @ MCS6NSS1

-67 dBm @ MCS7NSS1

-66 dBm @ MCS8NSS1

-60 dBm @ MCS9NSS1

5 GHz

802.11ac (VTH80)

-82 dBm @ MCS0NSS1

-79 dBm @ MCS1NSS1

-77 dBm @ MCS2NSS1

-74 dBm @ MCS3NSS1

-73 dBm @ MCS4NSS1

-66 dBm @ MCS5NSS1

-65 dBm @ MCS6NSS1

-64 dBm @ MCS7NSS1

-59 dBm @ MCS8NSS1

-57 dBm @ MCS9NSS1
Q&A

Questions & Answers

What should I do if the AP5030DN is not working properly?

Common troubleshooting steps for the AP5030DN include rebooting the device, checking network configurations, and upgrading firmware. Consult the user manual for detailed guidance.

What accessories are available for the AP5030DN?

Accessories for the AP5030DN include mounting kits, power injectors, and PoE adapters.

How does the AP5030DN compare to similar products?

The AP5030DN provides competitive performance with its 3x3 MIMO capability and built-in antennas, offering a cost-effective solution compared to other indoor APs in its category.

Can the AP5030DN operate without an AC/DC adapter?

Yes, the AP5030DN does not require an AC/DC adapter and can operate via PoE, simplifying installation and reducing costs.
