Name:	S5700-52X-LI-DC
Model:	S5700-52X-LI-DC Huawei S5700 Series Switch
Detail:	S5700-52X-LI-DC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,DC -48V)
	4.4 3 Rating: 87% 4.4/5.0 3 Reviews 10 Questions
Availability:	Item Backordered
Condition:	New Factory Sealed

US$ New Factory Sealed 3 Years

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, EMS, etc.

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Genuine Guarantee
Price Protection

Bulk Order Rebate
100% Moneyback

Expert Team Support

CCIE, HCIE, HPE ASE, etc.

Live Chat | Email

7*24h Online

+1-626-655-0998 (UTC 15:00 -- 00:00)

+852-25925389 (UTC 00:00 -- 9:00)

+852-25925411 (UTC 6:00 -- 15:00)

+1-626-655-0998

+852-25925389

+852-25925411

Project Inquiry

Join Us

Local Channel Manager
IT Sales Representative
Sales Manager

In United States

S5700-52X-LI-DC

S5700-52X-LI-DC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,DC -48V)

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

S5700-52X-LI-DC Overview

Huawei S5700-52X-LI-DC is one of the S5700-LI Series Switches.The S5700-LI is a next-generation energy-saving gigabit Ethernet switch that provides flexible GE access ports and 10 GE uplink ports. Building on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S5700-LI supports Advanced Hibernation Management (AHM), intelligent stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution. In addition, Huawei customizes specialized models to meet customer requirements to suit special scenarios. And the S5701-LI series with front power sockets can be installed in the 300 mm deep cabinet. They can be maintained through the front panel, saving space in small equipment rooms.

Quick Specs

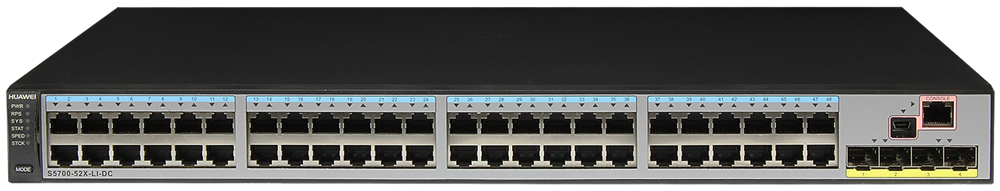

Figure 1 shows the appearance of S5700-52X-LI-DC.

Table 1 shows the Quick Specs.

Product Code	S5700-52X-LI-DC
Fixed Interfaces	48 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports
Power Supply	DC power supply, supporting RPS
Forwarding Performance	132 Mpps
Switching Capacity	256 Gbit/s
Memory (RAM)	256 MB
Flash	200 MB
Dimensions (W x D x H)	442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.)
Weight	≤ 5 kg (11.02 lb)

Product Details

Figure 2 shows the front panel of S5700-52X-LI-DC.

Note:

①	Forty-eight 10/100/1000BASE-T ports
②	Four 10GE SFP+ ports
③	One mini USB port
④	One console port

Figure 3 shows the back panel of S5700-52X-LI-DC.

Note:

①	Ground screw
②	RPS socket
③	DC power terminal

The Modules

Table 2 shows the recommended elements for the S5700-52X-LI-DC.

Model	Description
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ Optical Transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)
GE Copper Transceiver
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

Compare to Similar Items

Table 3 shows the comparison of S5700-52X-LI-DC, S5700-10P-PWR-LI-AC and S5700-28X-PWR-LI-AC.

Product Code	S5700-52X-LI-DC	S5700-10P-PWR-LI-AC	S5700-28X-PWR-LI-AC
Fixed Interfaces	48 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports	8 x 10/100/1,000 Base-T Ethernet ports, 2 x GE SFP ports	24 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports
PoE Available	No	PoE+	PoE+
Forwarding Performance	132 Mpps	15 Mpps	96 Mpps
Switching Capacity	256 Gbit/s	256 Gbit/s	256 Gbit/s
Power Consumption	< 61W	< 142.4W (PoE: 124W)	< 448.8W (PoE: 370W)

Get more information

Do you have any question about the S5700-52X-LI-DC?

Quality Certifications

Specification

S5700-52X-LI-DC Specification

S5700-52X-LI-DC Specification
Fixed Ports	48 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports
MAC Address Table	16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting
VLAN Features	4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces 1:1 and N:1 VLAN mapping
Jumbo frame	10K
Reliability	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection BPDU tunnel
IP Routing	Static route, RIP, RIPng (S5700-10P-LI-AC/S5700-10P-PWR-LI-AC do not support RIPng)
IPv6 Features	Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, and protocol type MLD v1/v2 snooping
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Interface-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface Packet redirection Interface-based traffic policing and two-rate and three-color CAR Eight queues on each interface WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on interfaces
Security	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface number, and VLAN ID Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH V2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist
Access Security	DHCP relay, DHCP server, DHCP snooping, and DHCP security
Lightning Protection	Service interface: 6 kV
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations Supports independent running client
Management and Maintenance	iStack Virtual Cable Test (VCT) Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON eSight and web-based NMS HTTPS LLDP/LLDP-MED System logs and multi-level alarms 802.3az EEE Dying Gasp Device hibernation mode
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP)
Operating Environment	Long-term operating temperature: 0°C to 50°C Relative humidity: 5% to 95% (non-condensing)
Input Voltage	DC: Rated voltage range: –48V to –60V, Maximum voltage range: –36V to –72V Note: Models supporting PoE do not use DC power supplies.
Power Socket Position	rear power sockets
Battery	One slot for lead-acid battery charger module
Dimensions (W x D x H)	442 mm x 310 mm x 43.6 mm
Power Consumption	< 61W

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What common troubleshooting steps are there for the S5700-52X-LI-DC?

Verify power supplies, check Ethernet cable connections, and ensure firmware is updated if the S5700-52X-LI-DC is unresponsive.

What accessories are available for the S5700-52X-LI-DC?

Accessories include SFP+ transceivers, additional power supplies, and mounting brackets.

How does the S5700-52X-Li-DC compare to similar products?

The S5700-52X-LI-DC offers a robust set of features at a lower price point compared to similar models from other leading brands.

Can the S5700-52X-LI-DC be managed remotely?

Yes, the S5700-52X-LI-DC supports remote management through a web interface, CLI, and SNMP.

Learn More

How cost-effective is the S5700-52X-LI-DC?

The S5700-52X-LI-DC is highly cost-effective with 48 Ethernet 10/100/1000 ports and 4 10 Gig SFP+ ports at a competitive price.

What are the key features of the S5700-52X-LI-DC?

It includes 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+ ports, and a DC -48V power supply, supporting high-speed networking.

What are the common application scenarios for the S5700-52X-LI-DC?

Ideal for enterprise networks, data centers, and campus networks requiring high-speed connectivity and reliable performance.

How do I install the S5700-52X-LI-DC?

Mount the S5700-52X-LI-DC in a standard 19-inch rack, connect power, and network cables, then configure via the web interface or CLI.

Does the S5700-52X-LI-DC require upgrades?

Ensure the S5700-52X-LI-DC firmware is updated for optimal performance and security; updates are typically available on Huawei's website.

Are there alternative products to the S5700-52X-LI-DC?

Alternatives include other Huawei S5700 series models or equivalent switches from Cisco or Juniper with similar port configurations.

What common troubleshooting steps are there for the S5700-52X-LI-DC?

Verify power supplies, check Ethernet cable connections, and ensure firmware is updated if the S5700-52X-LI-DC is unresponsive.

What accessories are available for the S5700-52X-LI-DC?

Accessories include SFP+ transceivers, additional power supplies, and mounting brackets.

How does the S5700-52X-Li-DC compare to similar products?

The S5700-52X-LI-DC offers a robust set of features at a lower price point compared to similar models from other leading brands.

Can the S5700-52X-LI-DC be managed remotely?

Yes, the S5700-52X-LI-DC supports remote management through a web interface, CLI, and SNMP.
