main product photo
Name:

S3700-52P-EI-48S-AC
Model: S3700-52P-EI-48S-AC Huawei S3700 Series Switch
Detail:
S3700-52P-EI-48S-AC(48 FE SFP,4 Gig SFP,AC 110/220V)
5 2 Rating:
100%
5/5.0
2 Reviews
Availability: Item Backordered
Condition: New Factory Sealed
US$ New Factory Sealed 3 Years
Warranty: 3 years warranty
Quote now, save up to 8%.
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, EMS, etc.
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 100% Moneyback
Expert Team Support

Expert Team Support

CCIE, HCIE, HPE ASE, etc.
Live Chat  |  Email
7*24h Online
+1-626-655-0998 (UTC 15:00 -- 00:00)
+852-25925389 (UTC 00:00 -- 9:00)
+852-25925411 (UTC 6:00 -- 15:00)
  +1-626-655-0998
  +852-25925389
  +852-25925411
Project Inquiry
Join Us
Local Channel Manager
IT Sales Representative
Sales Manager
In  United States
Part-time IT Sales

You may also be interested in the following product(s)

S3700-28TP-EI-AC

S3700-28TP-EI-AC

Rating:
100%
5/5.0
3 Reviews
US$308.00
S3700-28TP-SI-AC

S3700-28TP-SI-AC

Rating:
100%
5/5.0
9 Reviews
US$241.00

S3700-52P-EI-48S-AC

S3700-52P-EI-48S-AC(48 FE SFP,4 Gig SFP,AC 110/220V)

Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

S3700-52P-EI-48S-AC Overview

Huawei S3700-52P-EI-48S-AC integrates 48 FE SFP and 4 Gig SFP. Huawei S3700 Enterprise Switches are designed for resilient 100 Mbit/s Fast Ethernet L3 switching in large data centers, or as core switches in small to medium-sized enterprise campus IT environments.

Quick Specs

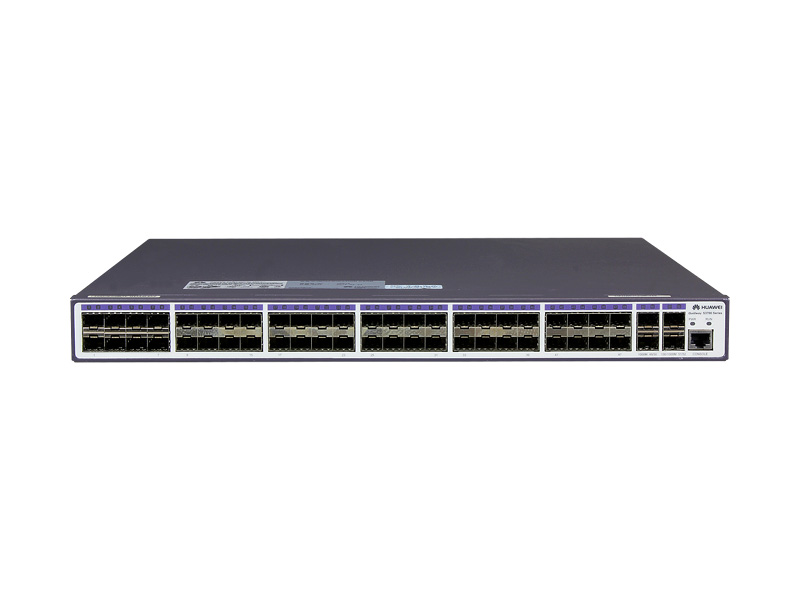

Figure 1 shows the appearance of Huawei S3700-52P-EI-48S-AC switch.

S3700-52P-EI-48S-AC

Table 1 shows the Quick Specs.

Product Code

S3700-52P-EI-48S-AC

Downlink Ports

48 × 100 Base-FX SFP ports,

Uplink Ports

2 × 100/1,000 Base-X SFP ports, and 2 × 1,000 Base-X SFP ports

Forwarding Performance

13.2 Mpps

Switching Capacity

64 Gbit/s

Stacking

Supported

Stack Connection Mode

Service port connection

Power

Built-in AC power module

Heat Dissipation

Forced air cooling

Installation mode

Rack mounting, desk mounting

300-mm deep cabinet

Not supported

Dimensions (W x D x H)

44.2 cm x 42 cm x 4.36 cm

Product Details

Figure 2 shows the front panel of Huawei S3700-52P-EI-48S-AC switch.

S3700-52P-EI-48S-AC Front Panel

Note:

①

Forty-eight 100BASE-X Ethernet optical interfaces

③

Two 100/1000BASE-X Ethernet optical interfaces

②

One console interface

④

Two 1000BASE-X Ethernet optical interfaces

Figure 3 shows the back panel of Huawei S3700-52P-EI-48S-AC switch.

S3700-52P-EI-48S-AC Back Panel

Note:

①

AC jack

②

Switch

③

Ground screw

The Transceiver

Table 3 shows the recommended optical transceivers.

Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)

eSFP-FE-LX-SM1310

Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC)

GE-SFP Optical Transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45)

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

Compare to Similar Item

Table 3 shows the comparison of Huawei S3700-52P-EI-48S-AC and S3700-52P-EI-24S-AC.

Models

S3700-52P-EI-48S-AC

S3700-52P-EI-24S-AC

Downlink Ports

48 × 100 Base-FX SFP ports,

24 × 100 Base-FX SFP ports,

Uplink Ports

2 × 100/1,000 Base-X SFP ports, and 2 × 1,000 Base-X SFP ports

2 × 100/1,000 Base-X SFP ports, and 2 × 1,000 Base-X SFP ports

Power Supply

AC

AC

Get more information

Do you have any question about the Huawei S3700-52P-EI-48S-AC switch?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications
Specification

S3700-52P-EI-48S-AC Specification

S3700-52P-EI-48S-AC Specification

Ports description

48*100Base-FX

2*100/1000Base-X, 2*1000Base-X

MAC address table

IEEE 802.1d compliance
16K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses

VLAN

4K VLANs
Guest VLANs, voice VLAN, and super VLAN
MUX VLAN and GVRP
VLAN assignment based on MAC addresses, protocols, and IP subnets
QinQ
Selective QinQ
1:1 VLAN mapping
N:1 VLAN mapping

Reliability

RRPP (ring topology, intersecting rings, and multi-instance), implementing protection switchover within 50 ms
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)
BPDU protection, root protection, and loop protection
Smart Ethernet Protection (SEP)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM

IP routing

Static routing, RIPv1, RIPv2, and ECMP

OSPF, IS-IS, and BGP

IPv6 features

Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
Manually configured tunnel
6to4 tunnel
ISATAP tunnel
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping

Multicast

1 K multicast groups
IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM and PIM-SSM

QoS/ACL

Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering on Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
SSH v2.0
CPU defense
Blacklist and whitelist

Surge protection

6KV surge protection capability on service ports (1KV on service ports on PoE devices)

Management and maintenance

iStack
MAC Forced Forwarding (MFF)
Remote configuration and maintenance using Telnet
Auto-Config
Virtual cable test
Ethernet OAM (IEEE 802.3ah and 802.1ag)
Dying gasp power-off alarm (S3700-28TP-EI-MC-AC)
SNMP v1/v2c/v3 and RMON
Web NMS

Operating environment

Operating temperature: 0℃–50℃(long term);
Relative humidity: 10%–90% (non-condensing)

Power supply

AC:
Rated voltage range: 100V to 240V AC; 50/60 Hz
Maximum voltage range: 90V to 264V AC; 50/60 Hz

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Weight

S3700-52P-EI-48S<4.8Kg

Power consumption

S3700-52P-EI-48S<90W
Q&A

Questions & Answers

What troubleshooting steps can I take if the S3700-52P-EI-48S-AC is not functioning properly?

Check the power connection, ensure firmware is up-to-date, and review port configurations to identify any issues.

What accessories are available for the S3700-52P-EI-48S-AC?

Accessories include additional SFP modules, power cables, and rack mounting kits.

How does the S3700-52P-EI-48S-AC compare with other Huawei switches?

It provides a good balance of port density and performance, making it suitable for enterprise and data center deployments compared to lower-end models.

How can I use the S3700-52P-EI-48S-AC for network expansion?

Use the 48 FE SFP ports for dense fiber connections and the 4 Gigabit SFP ports for high-speed uplinks to expand your network.
